YCM Taiwan HMC
High-rigidity, high-precision

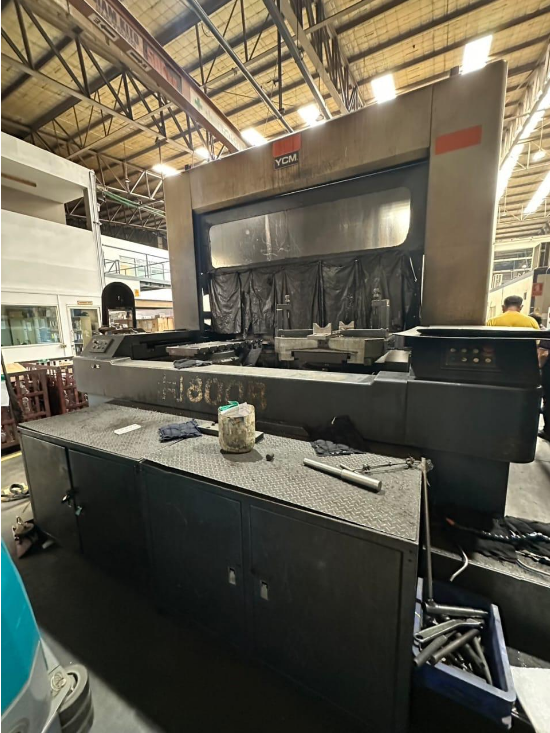

Engineered for speed, precision, and durability, the YCM HMC 220 from Taiwan’s Yeong Chin Machinery (YCM) is a high-efficiency horizontal machining center built to handle demanding production environments. With robust structural design, high-speed spindle options, and advanced pallet-changing capabilities, it ensures maximum uptime and tight-tolerance accuracy for high-volume machining.
Ideal for automotive, aerospace, die & mold, and general machining industries, the YCM HMC 220 combines power and precision with exceptional thermal stability and chip evacuation design.
Machine type | 4 Axis Horizontal Machining center | X Axis | 1300 mm |
Make | YCM, Taiwan | Y Axis | 1050 mm |
Model | H 800B | Z Axis | 1150 mm |
Year of Make | 2008 | TABLE | 800 x 800 mm x 2 |

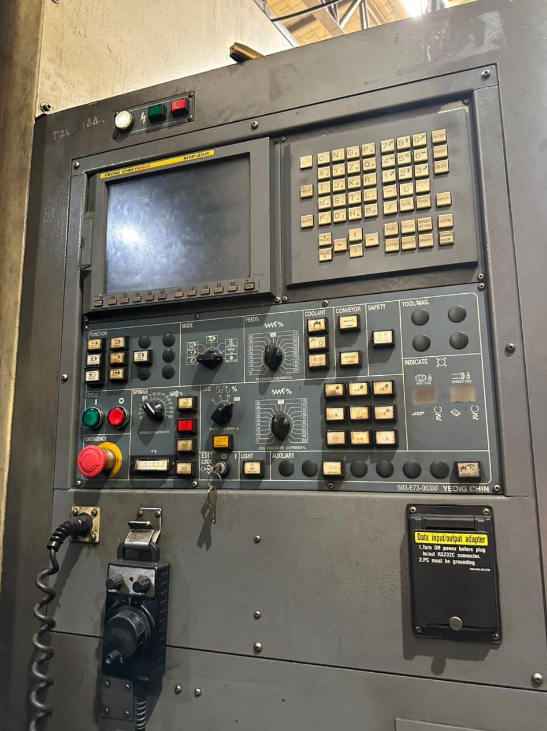

Control | Fanuc MXP 200i | ATC | 60 Tool |
Location | CTC, Bangalore - Unit 3 | Spindle Bore & Taper | 22KW & BT50 |
| No of Axis | 4 Axis |
