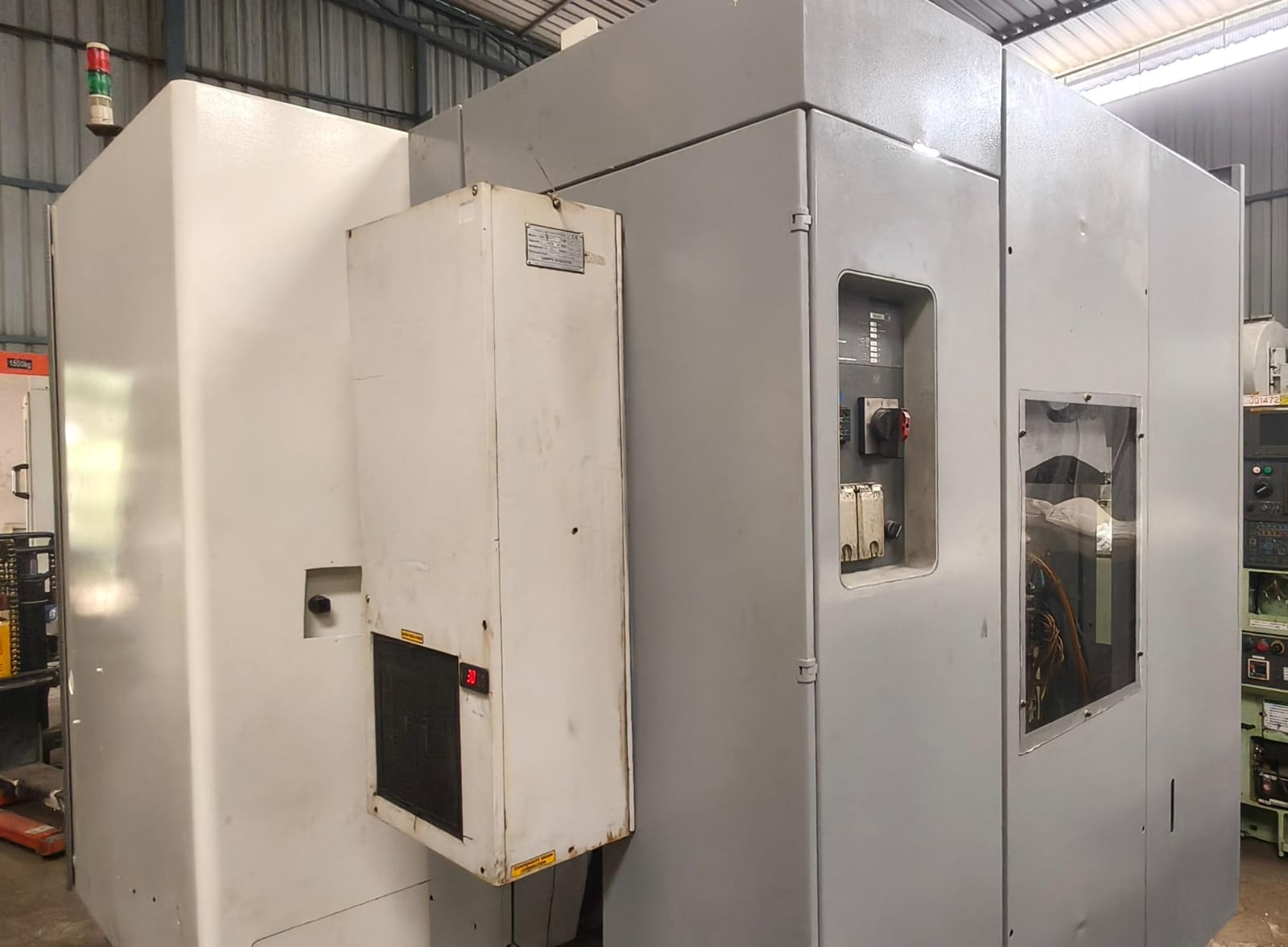

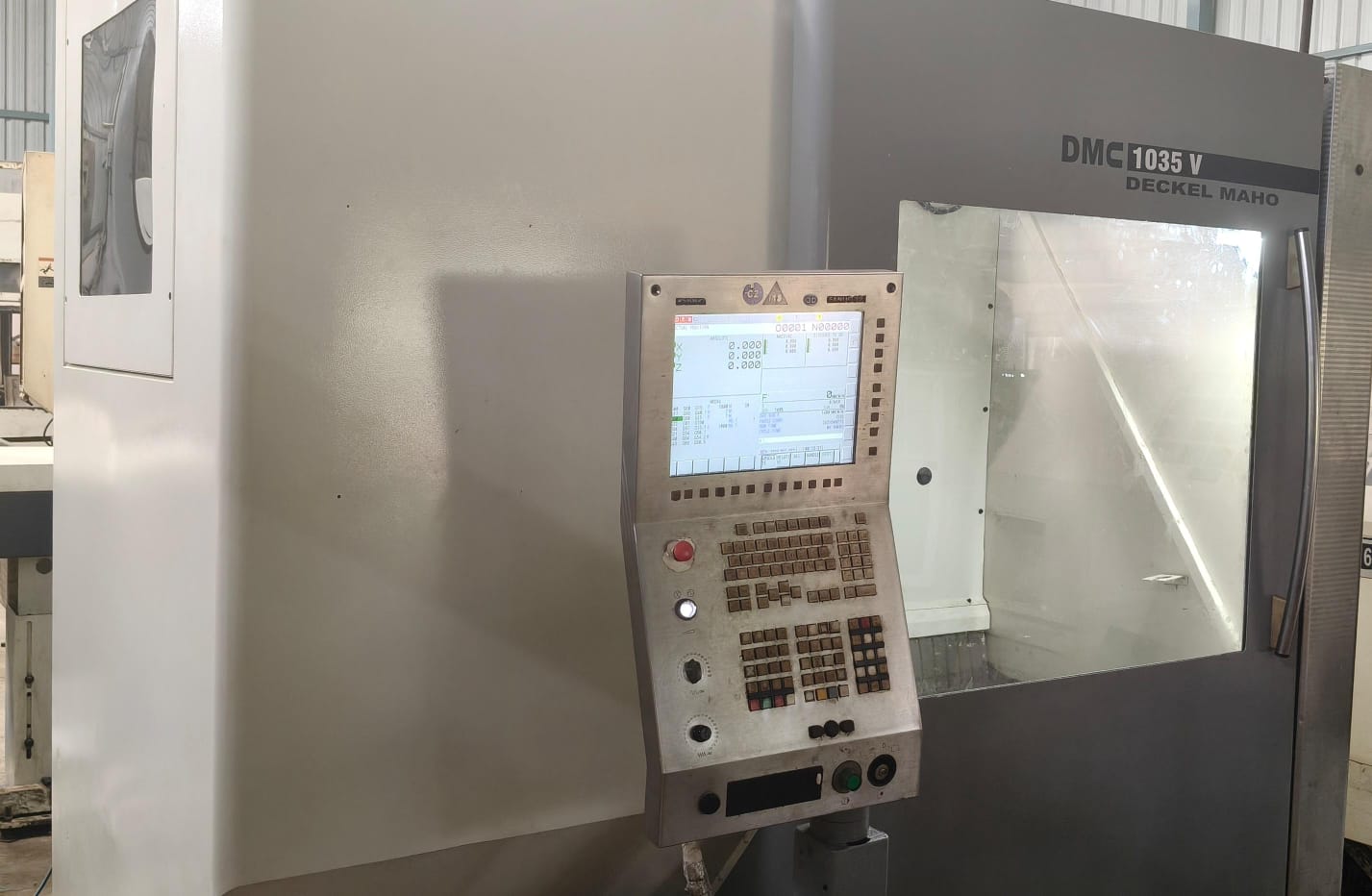

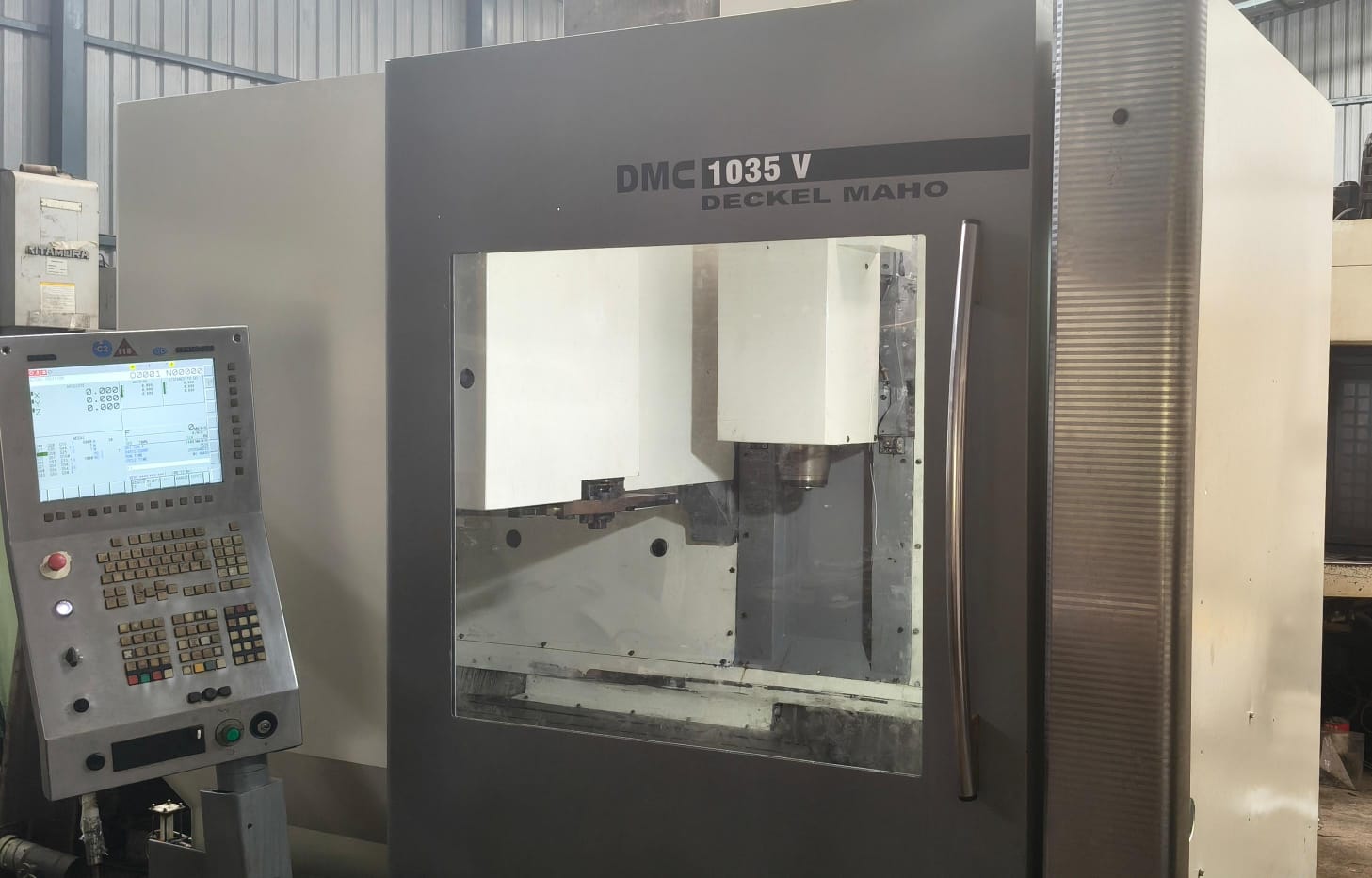

Deckel Maho DMC 1035V
Vertical Machining Centre (VMC) — C-frame design
Deckel Maho DMC 1035V — robust 3-axis vertical machining centre with a 1035 × 560 × 500/510 mm work envelope, 1200×560 mm table and up to 30-station tool magazine. Ideal for aerospace, automotive, mould & die and general engineering shops that require rigid, precise and production-capable milling for medium-to-large parts.
Manufacturer | Deckel maho |
Model | DMC 1035V |
Year | 2009 |
Control unit | FANUC 32i |
X axis travel | 1035mm |
Y axis travel | 560mm |
Z axis travel | 510mm |
table length | 1200*560mm |
Tool magazine | 20 pocket |
Spindle speed | 8000rpm |
Spindle taper | SK 40 |
Rapid traverse | 24000m/min |
Table load: | 800kg |
