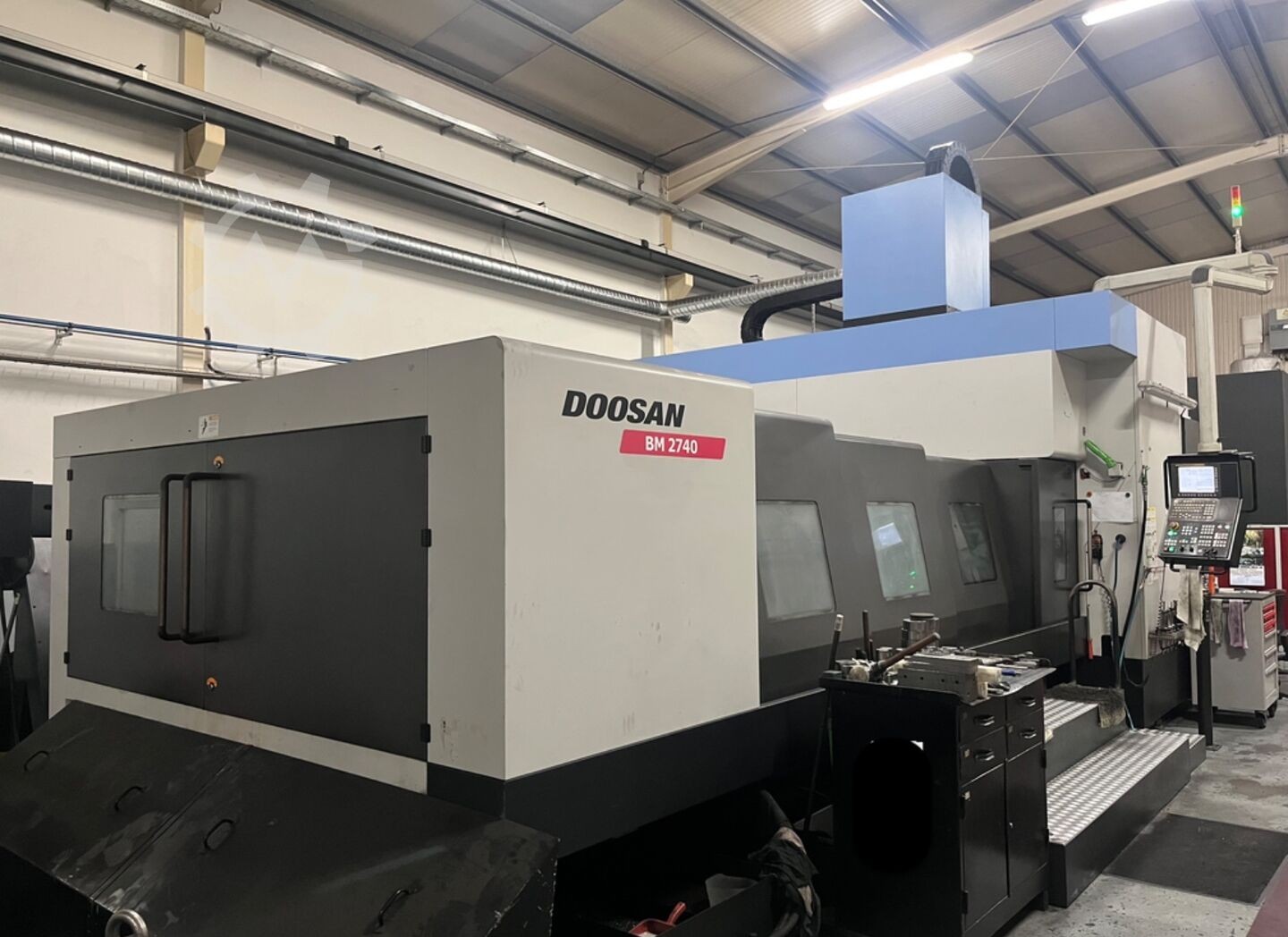

Doosan BM2740P, Model Year : 2011
Vertical Machining Center
Rugged Double-Column Design for Maximum Stability
Built with a solid double-column, fixed cross-rail structure, the BM 2740P delivers exceptional rigidity—ideal for precision machining and heavy-duty applications.
🏭 Industry Applications & Use Cases
Automotive Industry
Applications: Precision machining of engine blocks, transmission components, and structural parts.
Use Cases: High-volume production of automotive parts requiring tight tolerances and surface finishes.
Aerospace Industry
Applications: Machining of turbine housings, structural components, and landing gear parts.
Use Cases: Production of complex aerospace components that demand high precision and reliability.
Energy Sector
Applications: Manufacturing of components for power generation equipment, including turbines and generators.
Use Cases: Fabrication of large, heavy-duty parts for the energy industry requiring robust machining capabilities.
Molds and Dies
Applications: Creation of molds for plastic injection, die-casting, and stamping processes.
Use Cases: Production of high-precision molds and dies for various manufacturing processes.
General Engineering
Applications: Machining of custom parts and prototypes for various industries.
Use Cases: Versatile machining of diverse components requiring high precision and flexibility.
Parameter | Value |
X-Axis Travel | 4,000 mm (157.48 inches) |
Y-Axis Travel | 2,700 mm (106.3 inches) |
Z-Axis Travel | 800 mm (31.49 inches) |
Spindle Speed | 12,000 RPM |
Spindle Motor | 25/30 kW |
Spindle Taper | ISO #50 (Big Plus) |

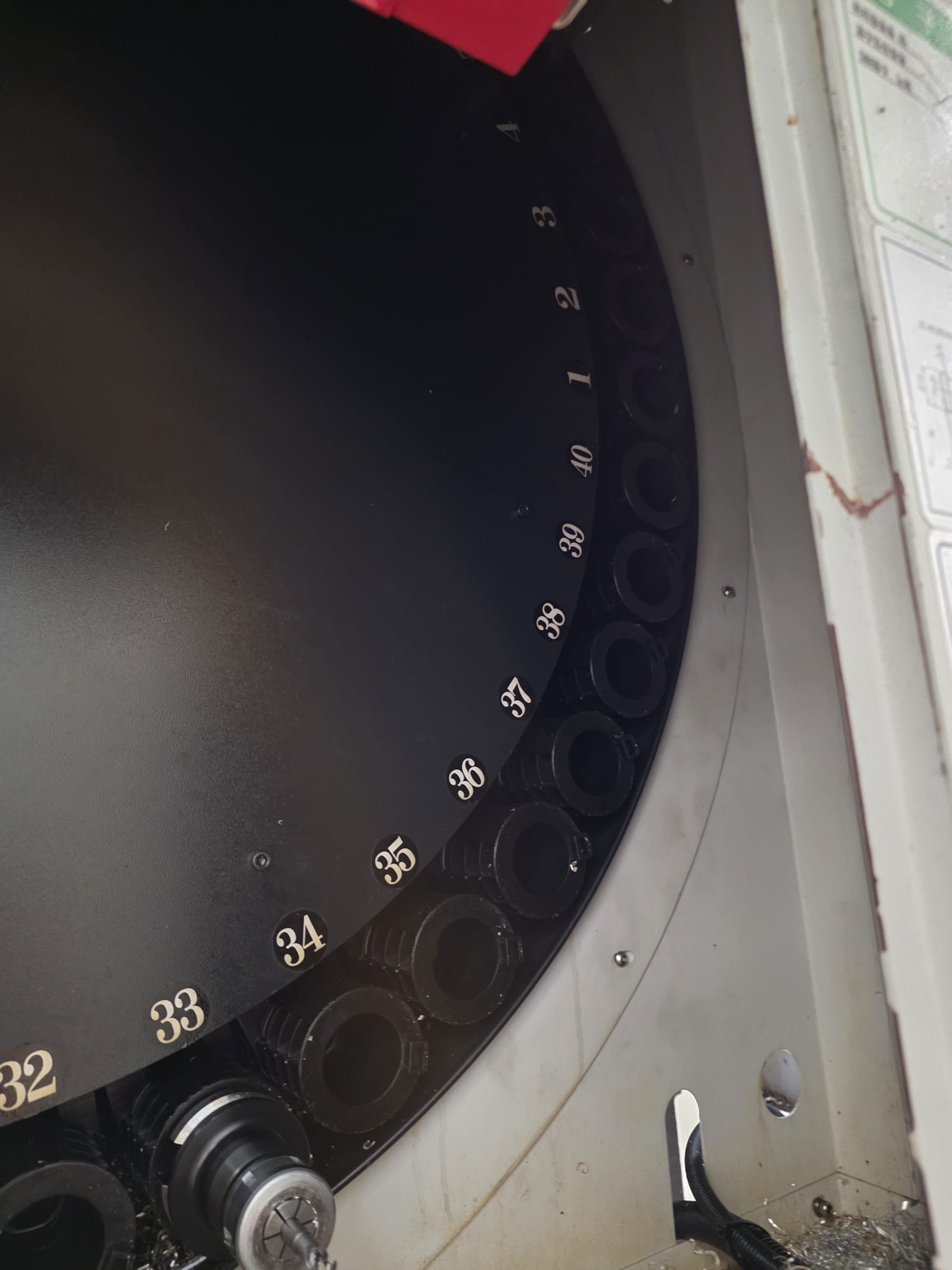

Tool Magazine Capacity | 40 tools |

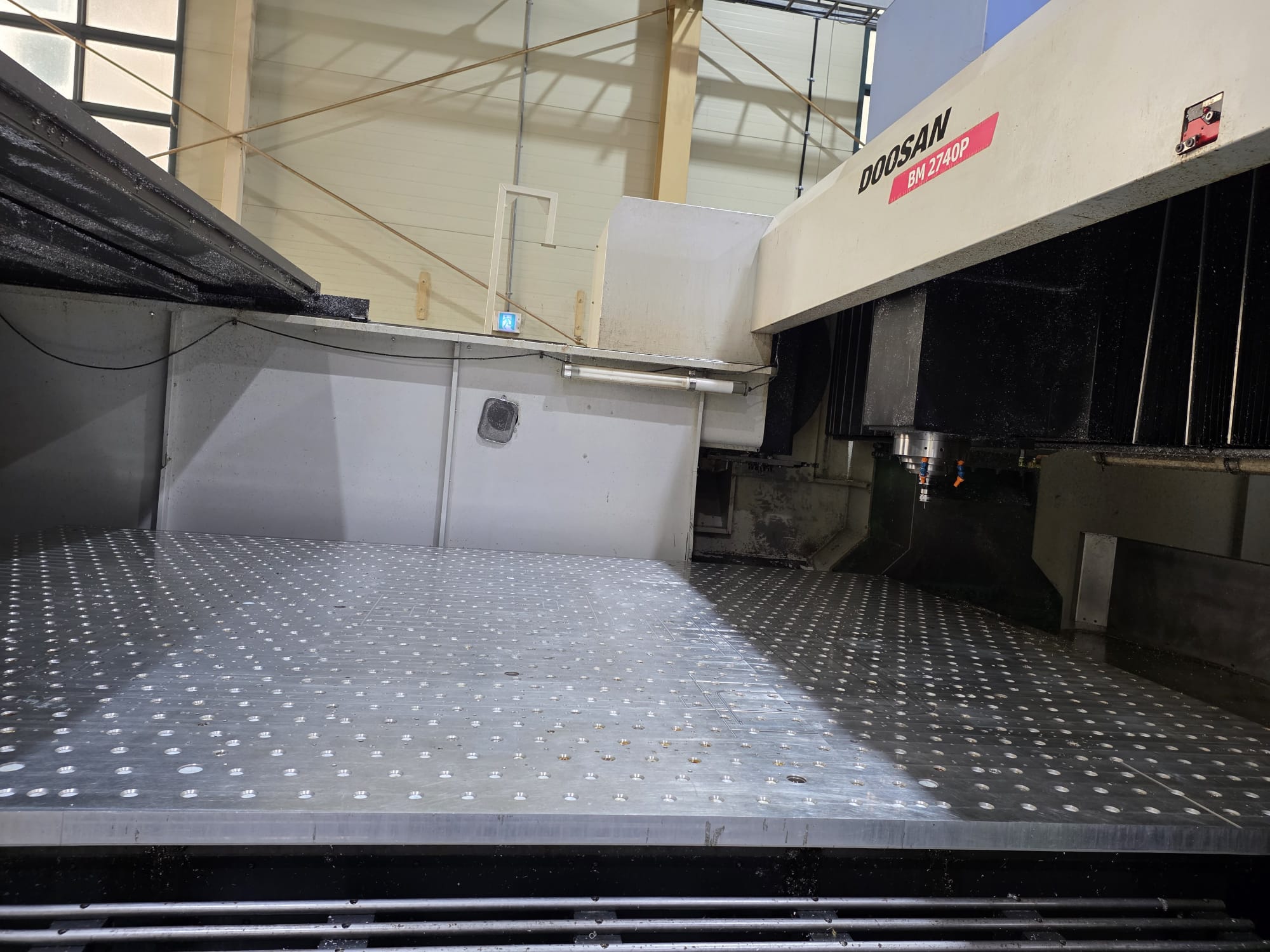

Table Size | 4,000 mm x 2,500 mm (157.48" x 98.43") |
Table Load Capacity | 15,000 kg (33,000 lbs) |

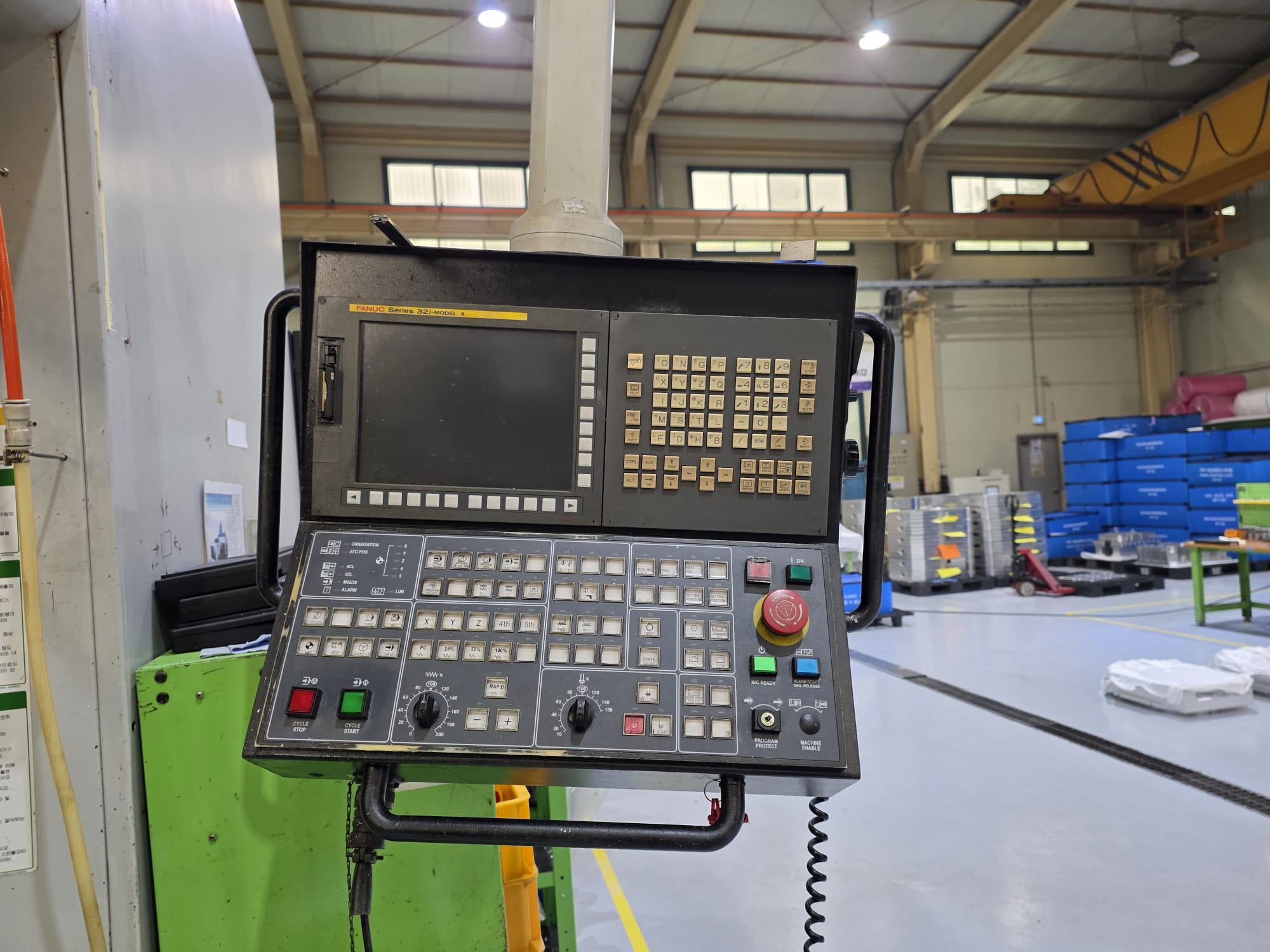

Control System | Fanuc 31i-B |
Machine Dimensions | 5,721 mm (L) x 10,825 mm (W) x 3,760 mm (H) |
Machine Weight | 48,000 kg (105,840 lbs) |
