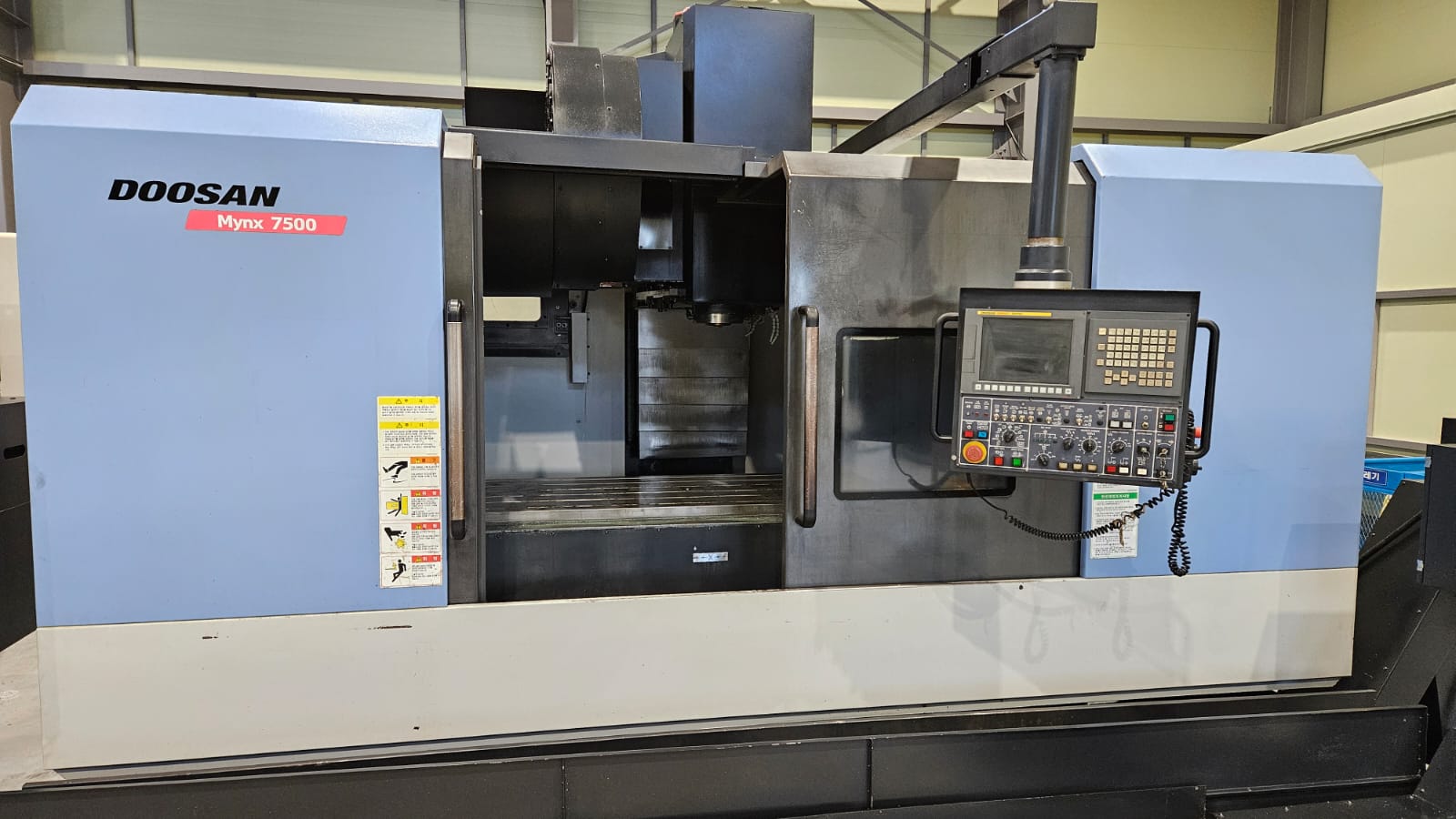

Doosan Mynx 7500 BT40
Vertical Machining Center
Doosan MYNX 7500 Vertical Machining Center is a heavy-duty, high-precision CNC VMC designed for consistent production machining. Built with a rigid cast-iron structure and proven Korean engineering, it delivers excellent accuracy, stability, and surface finish even during long machining cycles. Equipped with a BT40 spindle (up to 8,000 rpm), large table capacity, and reliable FANUC control, the MYNX 7500 is ideal for machining automobile components, hydraulic manifolds, fixtures, and general engineering parts. Its robust construction, high load capacity, and long service life make it a dependable choice for job shops and production environments seeking performance with durability.
Item | Specification |
|---|---|
X-Axis Travel | ~1500 mm |
Y-Axis Travel | ~750 mm |
Z-Axis Travel | ~650 mm |
Table Size | ~1600 × 750 mm |
Max Table Load | ~1200–1500 kg |
T-Slots | Standard industrial |
Item | Specification |
|---|---|
Spindle Taper | BT40 |
Spindle Speed Range | 10 – 8,000 rpm |
Spindle Drive | Belt-driven |
Spindle Motor Power | ~18.5 / 22 kW |
Item | Specification |
|---|---|
CNC System | FANUC 0i-M Series (MC / MF) |
Programming | ISO G-Code |
Features | Rigid tapping, macro, offsets |
Data Interface | Ethernet / CF / RS-232 |
