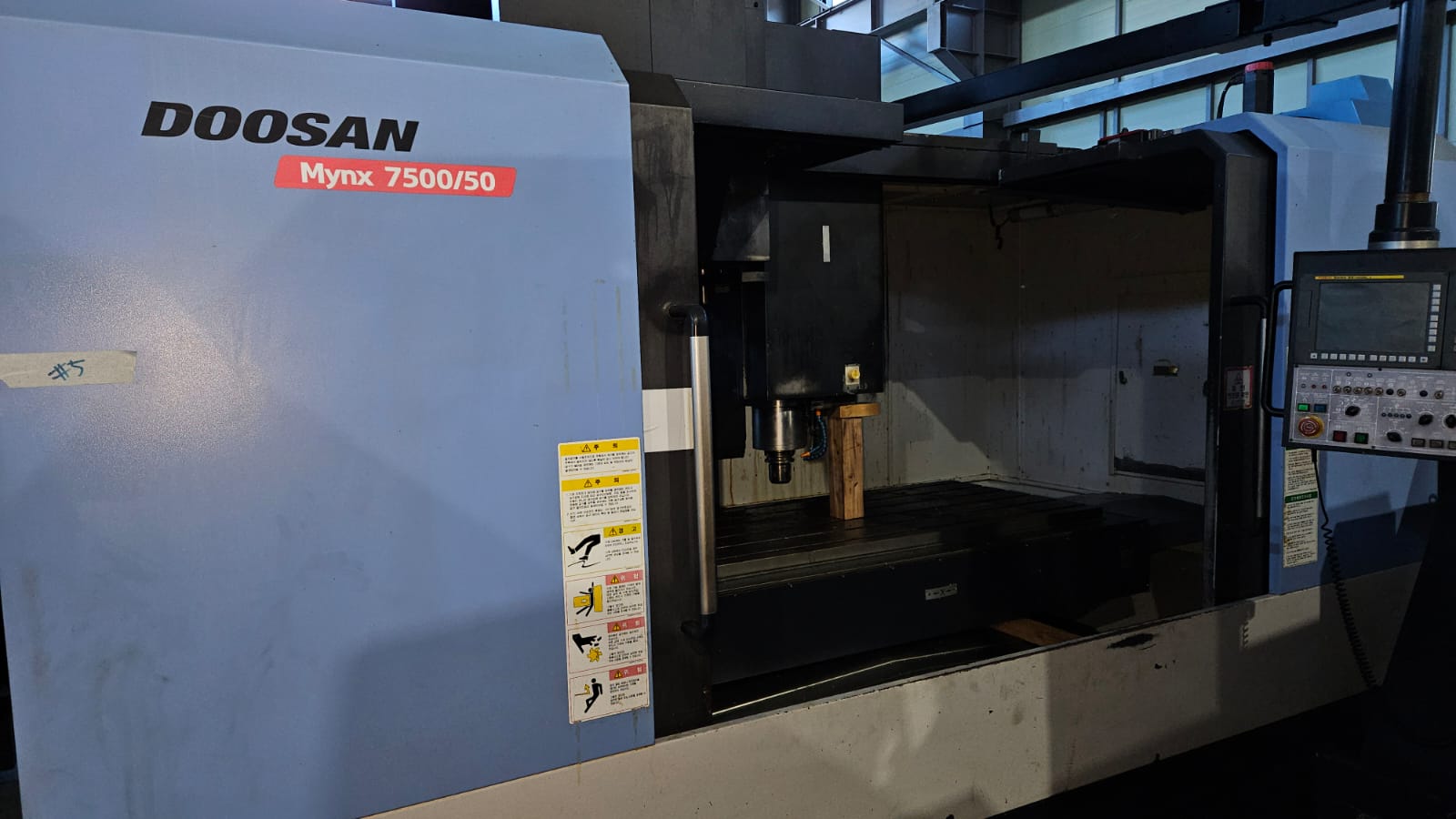

Doosan Mynx 7500/50 BT50
Vertical Machining Center
The Doosan Mynx 7500/50 is a heavy-duty vertical machining center designed for high-precision and high-volume CNC machining. Built with a rigid cast-iron structure and powerful spindle system, this machine delivers excellent surface finish, dimensional accuracy, and long-term reliability.
With a robust electrical capacity of 42.87 kVA and a total machine weight of 14 tons, the Mynx 7500/50 is ideally suited for demanding applications such as automotive components, hydraulic parts, die & mold work, and general engineering. Its stable construction minimizes vibration, enabling consistent performance even during aggressive cutting operations.
Manufactured in South Korea, this model reflects Doosan’s reputation for durability, precision engineering, and production efficiency—making it an excellent choice for workshops seeking dependable CNC performance with low downtime.
Category | Feature | Specification |
Travels | X-axis Travel | 1,525 mm (60.0 in) |
| Y-axis Travel | 770 mm (30.3 in) |
| Z-axis Travel | 625 mm (24.6 in) |
Spindle | Spindle Speed (Std) | 6,000 RPM |
| Spindle Taper | ISO #50 (Big Plus) |
| Spindle Motor Power | 18.5 / 22 kW (25 / 30 HP) |
| Max. Spindle Torque | 307.2 N⋅m (226.7 ft-lbs) |

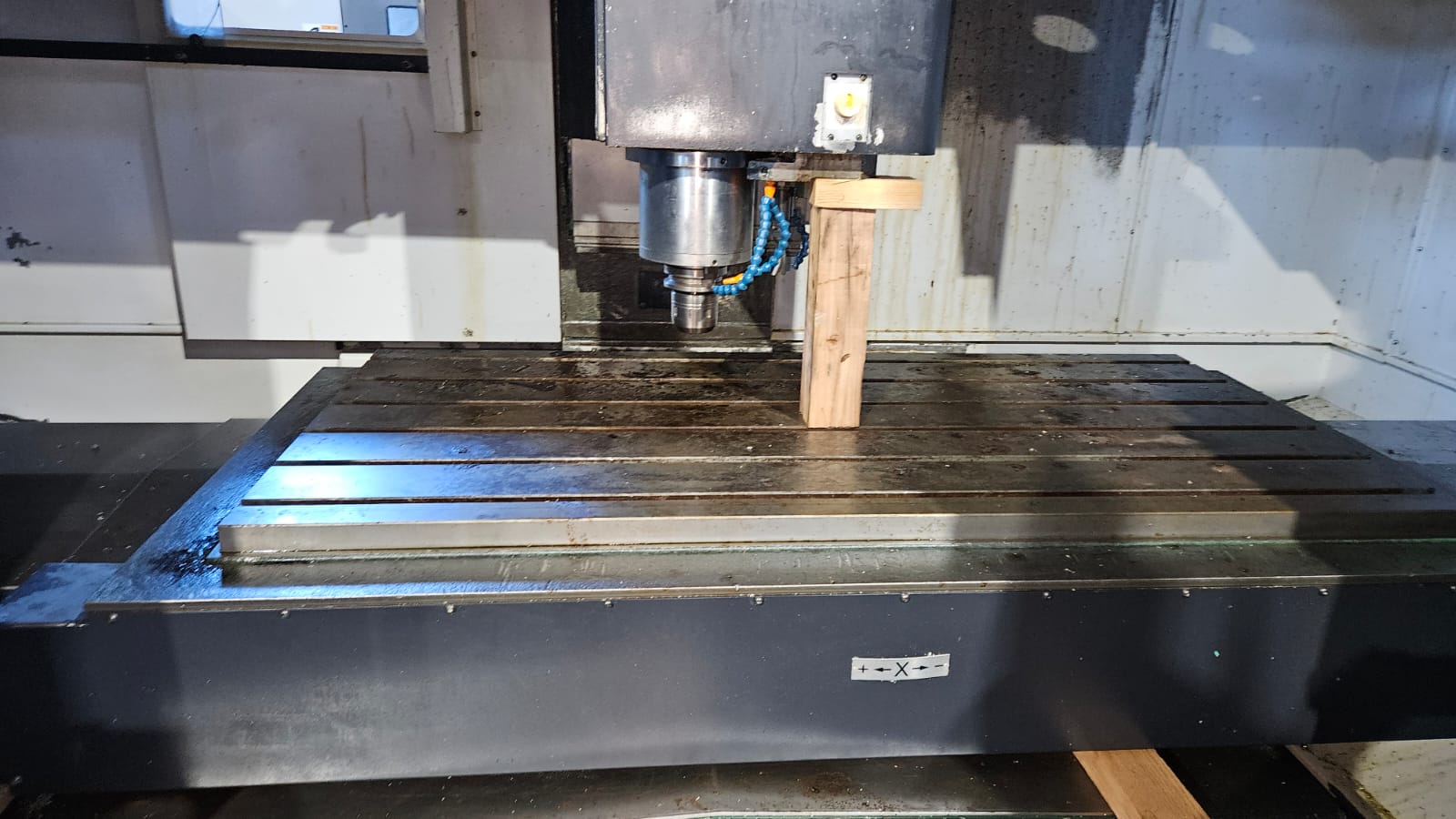

Table | Table Size | 1,600×750 mm (63.0×29.5 in) |
| Max. Table Load | 1,500 kg (3,306 lbs) |
| Spindle to Table Distance | 200 – 825 mm (7.9 – 32.5 in) |
Feedrates | Rapid Traverse (X/Y) | 30 m/min (1,181 ipm) |
| Rapid Traverse (Z) | 24 m/min (945 ipm) |
ATC | Tool Storage Capacity | 24 (Std) / 30 or 40 (Opt) |
| Max. Tool Weight | 15 / 20 kg (33.1 / 44.1 lbs) |
| Tool Change Time (T-T-T) | 2.5 seconds |
General | Machine Weight | 13,500 kg (29,762 lbs) |
| Floor Space (L x W) | 3,900×4,050 mm (153.5×159.4 in) |
