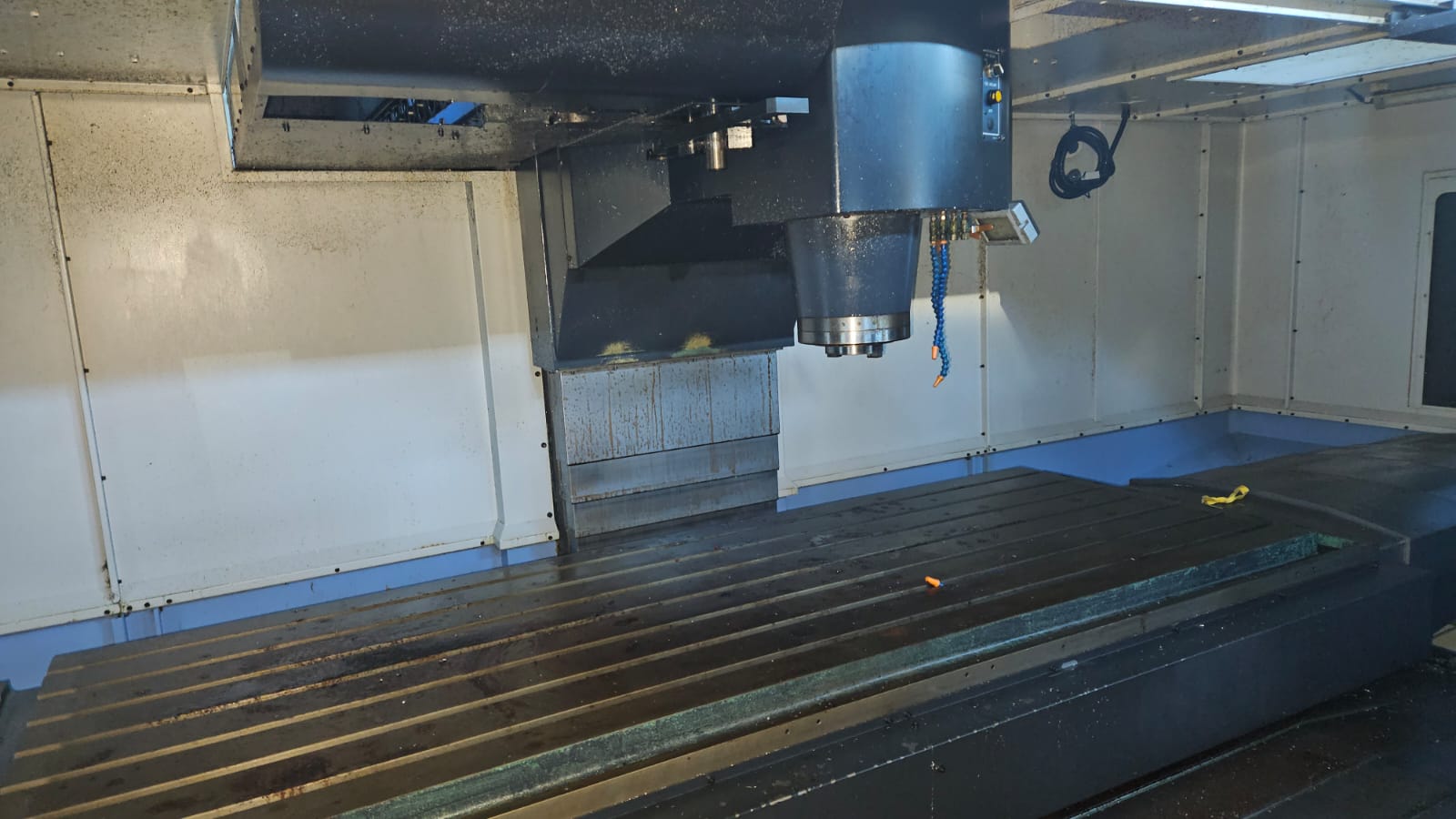

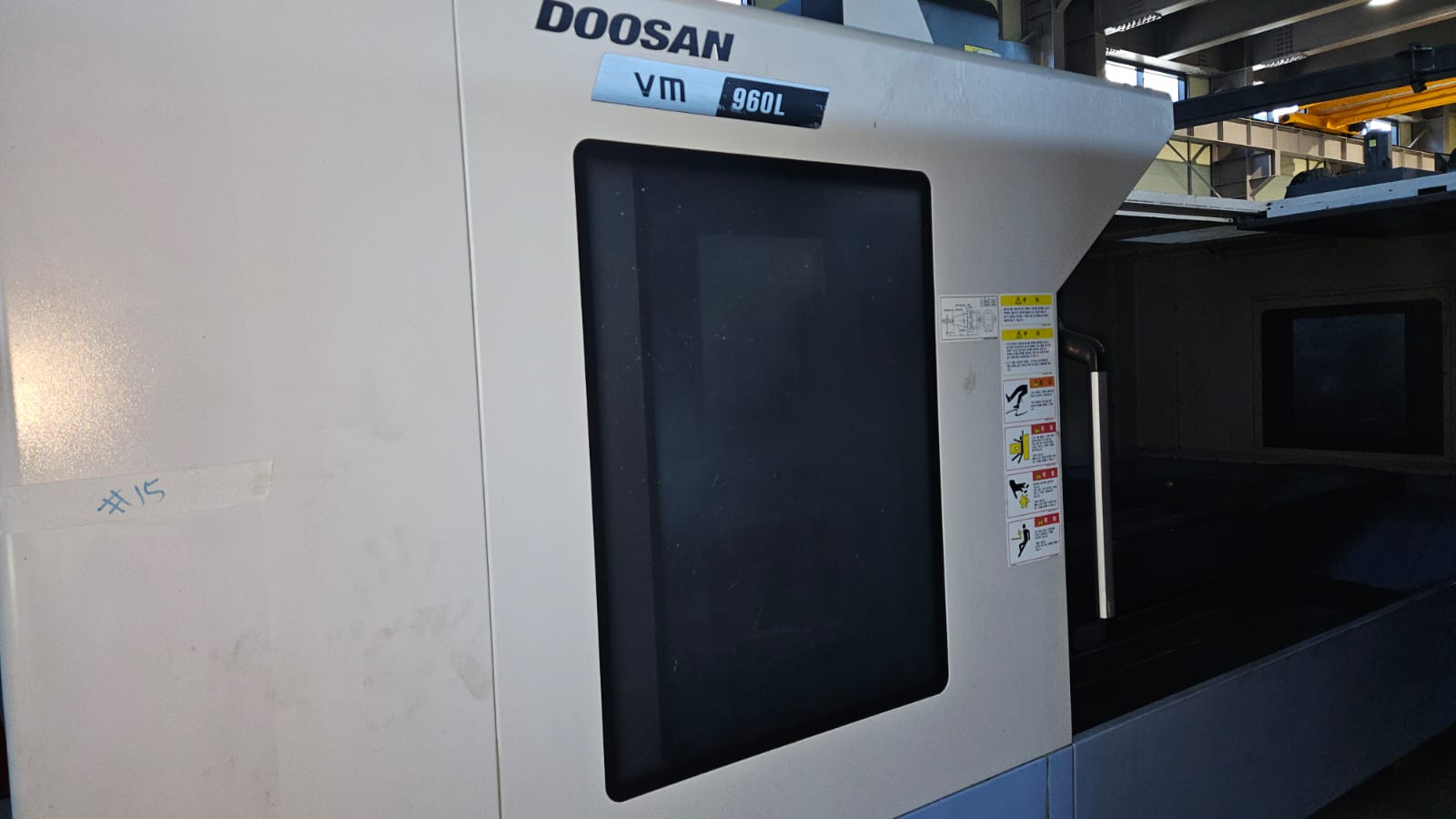

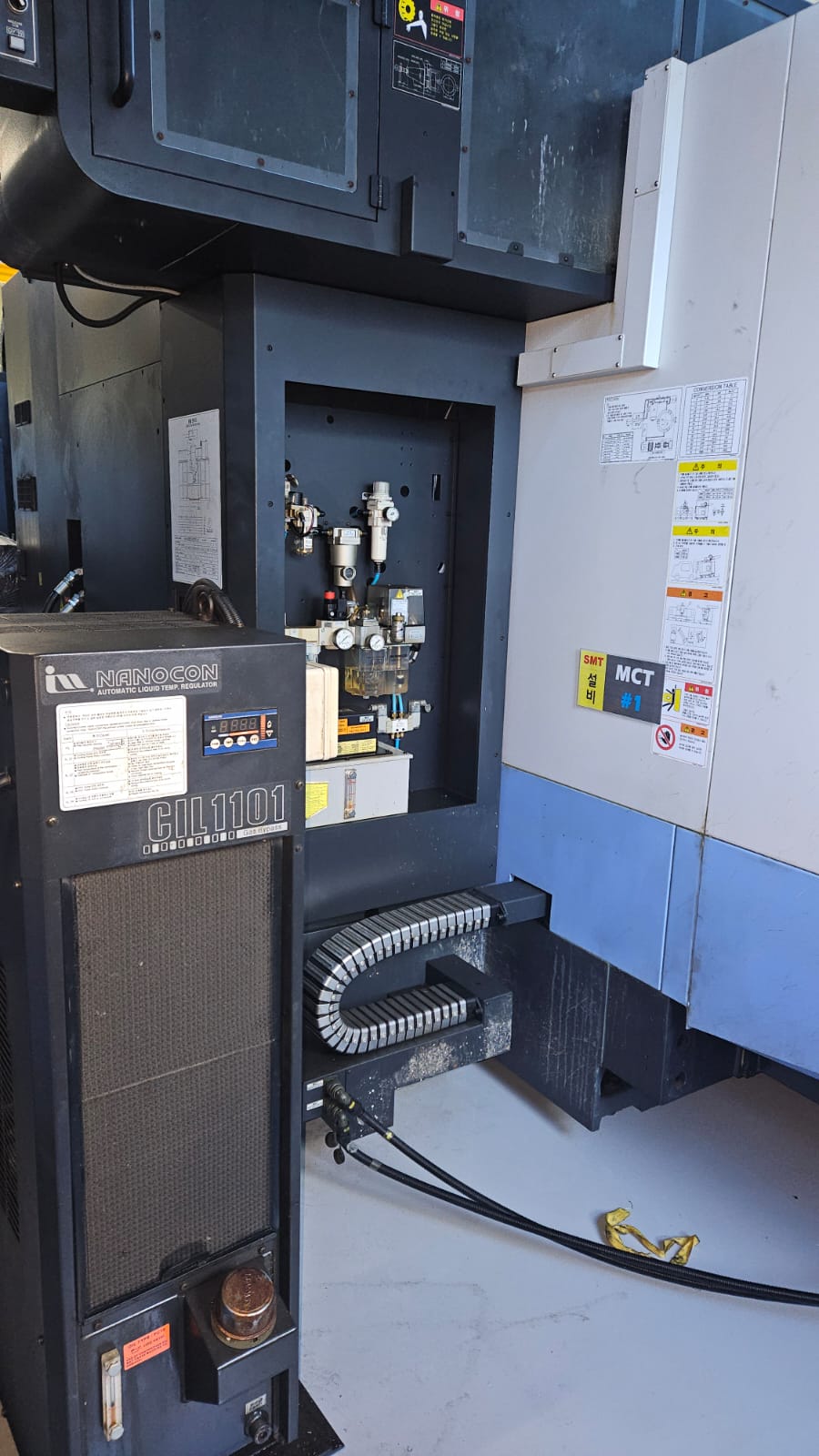

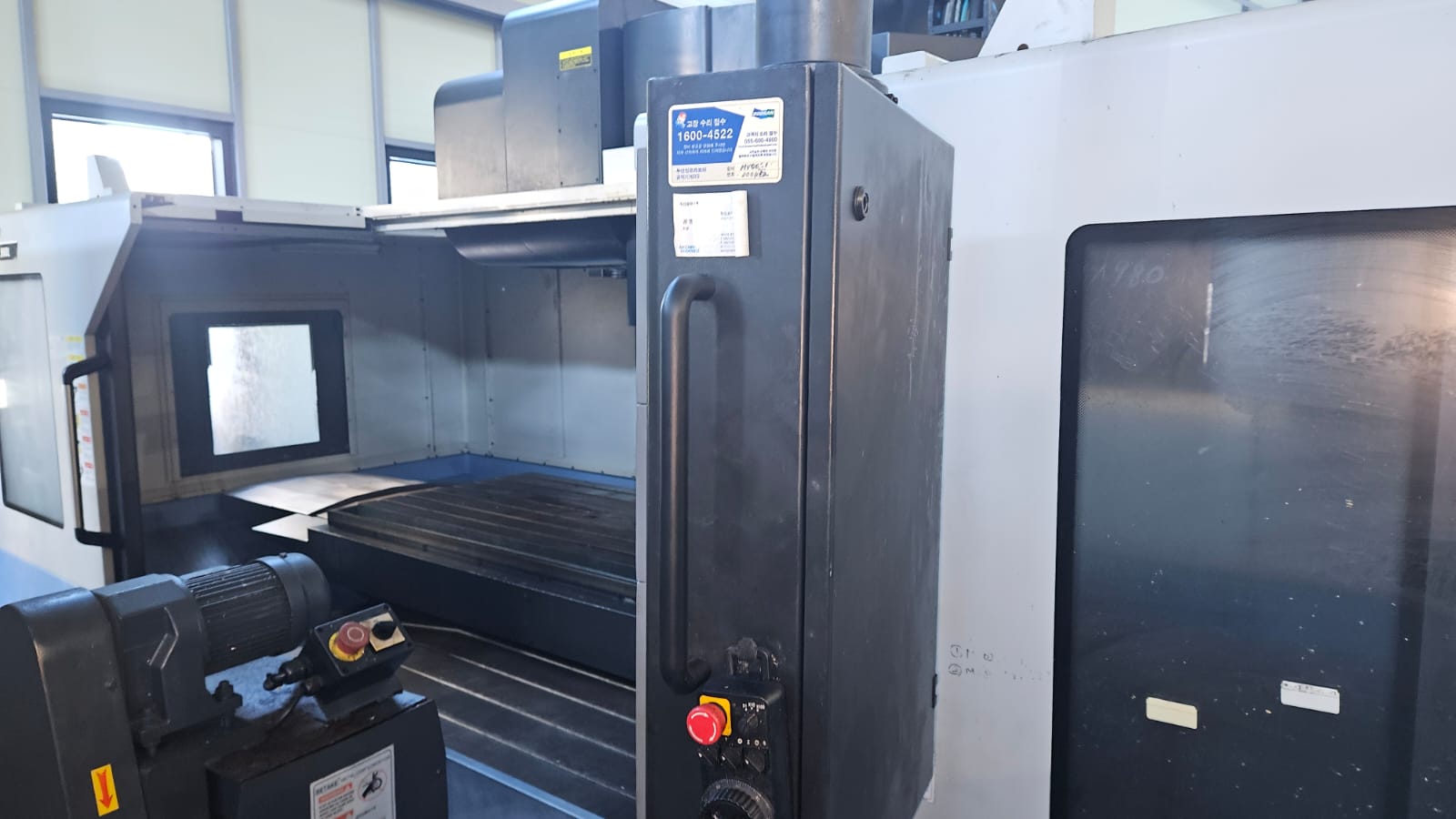

Doosan VM 960L
Vertical Machining Center (VMC)
The Doosan VM 960L is a heavy-duty vertical machining center designed for high-precision and high-productivity operations. Built with a rigid structure and reliable spindle system, it is suitable for machining large and complex components across automotive, hydraulic, general engineering, and industrial manufacturing applications. The machine supports stable cutting performance, long operational life, and consistent accuracy, making it ideal for continuous production environments.
Category | Feature | Specification |
Travels | X-axis Travel | 2,400 mm (94.5 in) |
| Y-axis Travel | 960 mm (37.8 in) |
| Z-axis Travel | 800 mm (31.5 in) |
Spindle | Spindle Speed (Std) | 6,000 RPM (12,000 RPM built-in opt) |
| Spindle Taper | ISO #50 (Big Plus) |
| Spindle Motor Power | 18.5 / 15 kW (30 kW opt) |
Table | Table Size | 2,600×950 mm (102.4×37.4 in) |
| Max. Table Load | 4,500 kg (9,920.7 lbs) |
Feedrates | Rapid Traverse (X/Y/Z) | 16 m/min (630 ipm) |
ATC | Tool Storage Capacity | 30 (Std) / 40 (Opt) |
General | Machine Weight | 21,000 kg (46,297 lbs) |
