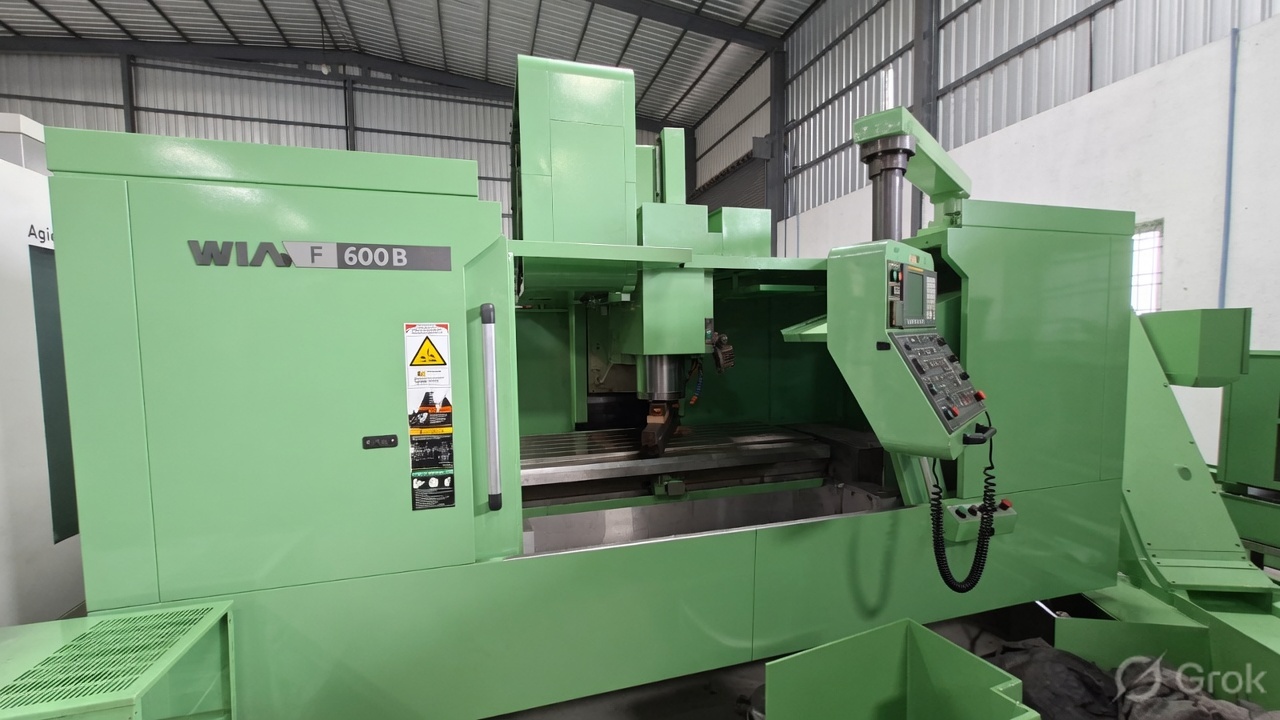

HYUNDAI WIA F 600B
VERTICAL MACHINE CENTER
Machine Description
The Hyundai WIA F600P is a heavy-duty Vertical Machining Center (VMC) designed for precision machining of medium to large components. It performs milling, drilling, tapping, boring, pocket milling, contour machining, and surface finishing in a single setup. The FANUC CNC control provides reliable high-speed machining with excellent positioning accuracy.
The machine is suitable for production environments requiring high rigidity, repeatability, and long service life.
Parameter | Value |
Manufacturer | Hyundai WIA |
Model | F600B |
Country of Origin | South Korea |
Machine Type | Vertical Machining Center (VMC) |

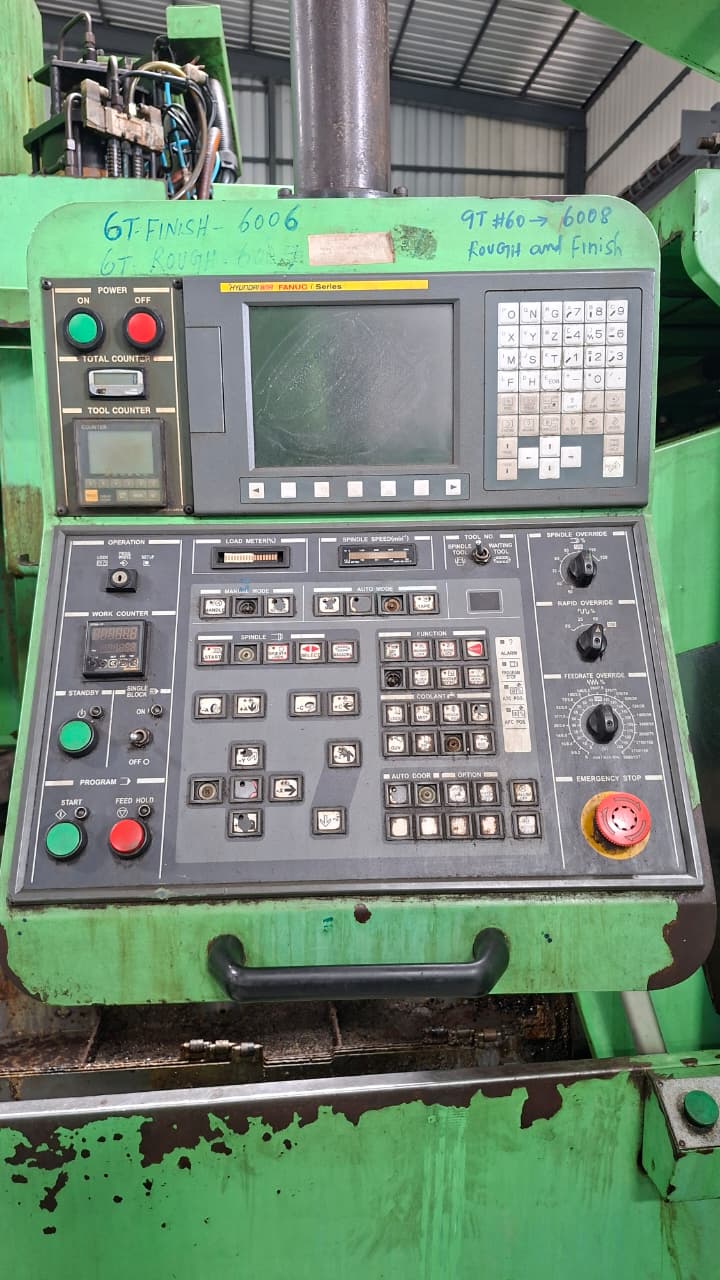

CNC Control | Fanuc i Series |
Axes | 3-Axis (X,Y,Z) |
X-Axis/Y-Axis/Z-Axis Travel | 1050 mm/600 mm/600 mm |

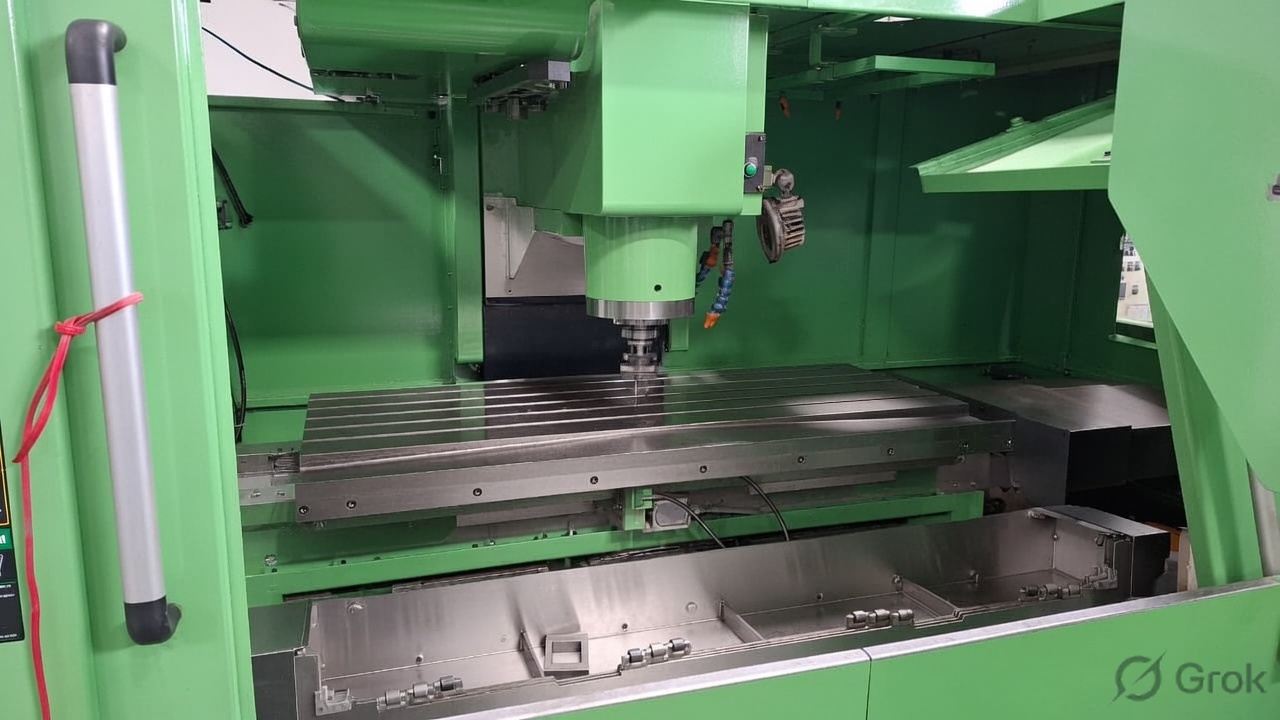

Table Size (Length × Width) | 1,600 × 600 mm |
Maximum Spindle Speed | 4500 RPM |
Spindle Taper | BT50 |
(ATC) Tool Capacity | 20 Tools |
