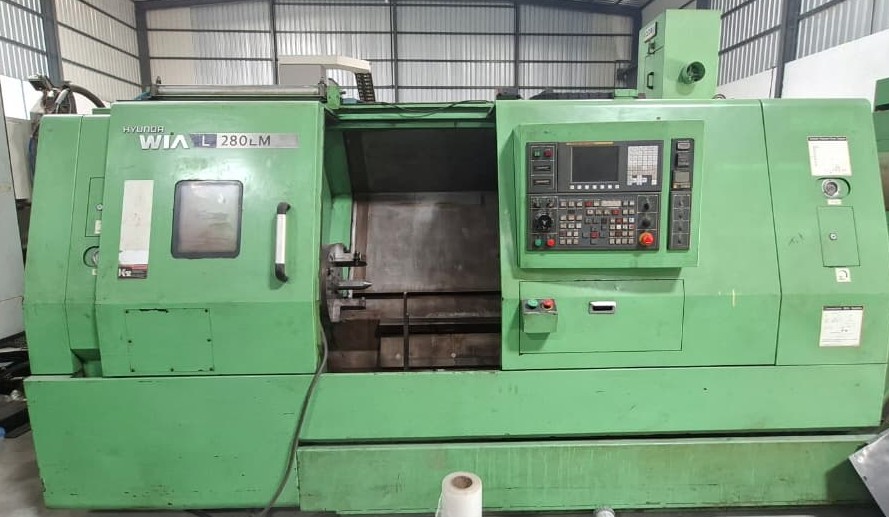

Hyundai WIA L280 LM
CNC TURNING CENTER
Machine Description
The Hyundai WIA L280LM is a heavy-duty horizontal CNC Turning Center designed for high-precision turning operations. It is suitable for continuous production as well as job-shop machining. The machine offers excellent rigidity, reliable spindle performance, and high machining accuracy for shafts, flanges, bushings, and other rotational components.

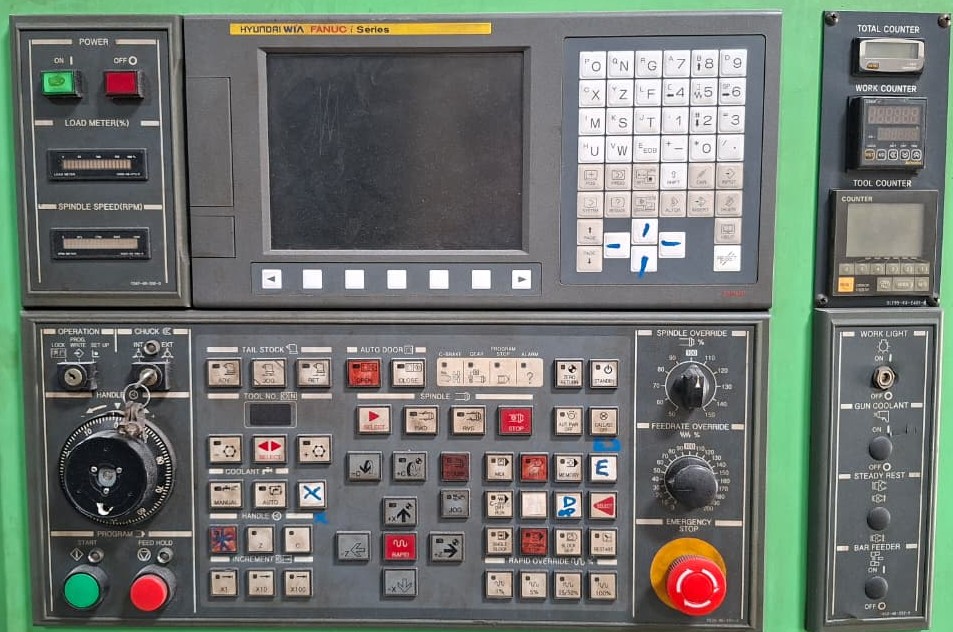

Its FANUC CNC control provides fast programming, stable machining, and compatibility with standard G-code programming.
Parameter | Value |
Manufacturer | Hyundai WIA |
Model | L280LM |
Machine Type | CNC Turning Center |
Layout | 60° Slant Bed |
Chuck Size | 10 inch |
Maximum Turning Diameter | 410 mm |
Maximum Turning Diameter (with Milling) | 300 mm |
Maximum Turning Length | 1200 mm |
Maximum Bar Capacity | 76 mm |
Travel (X) | 220 mm |
Travel (Z) | 1200 mm |
Rapid Traverse (X/Z) | 25 / 30 m/min |
