KAFO
Heavy-Duty Vertical Machining Center

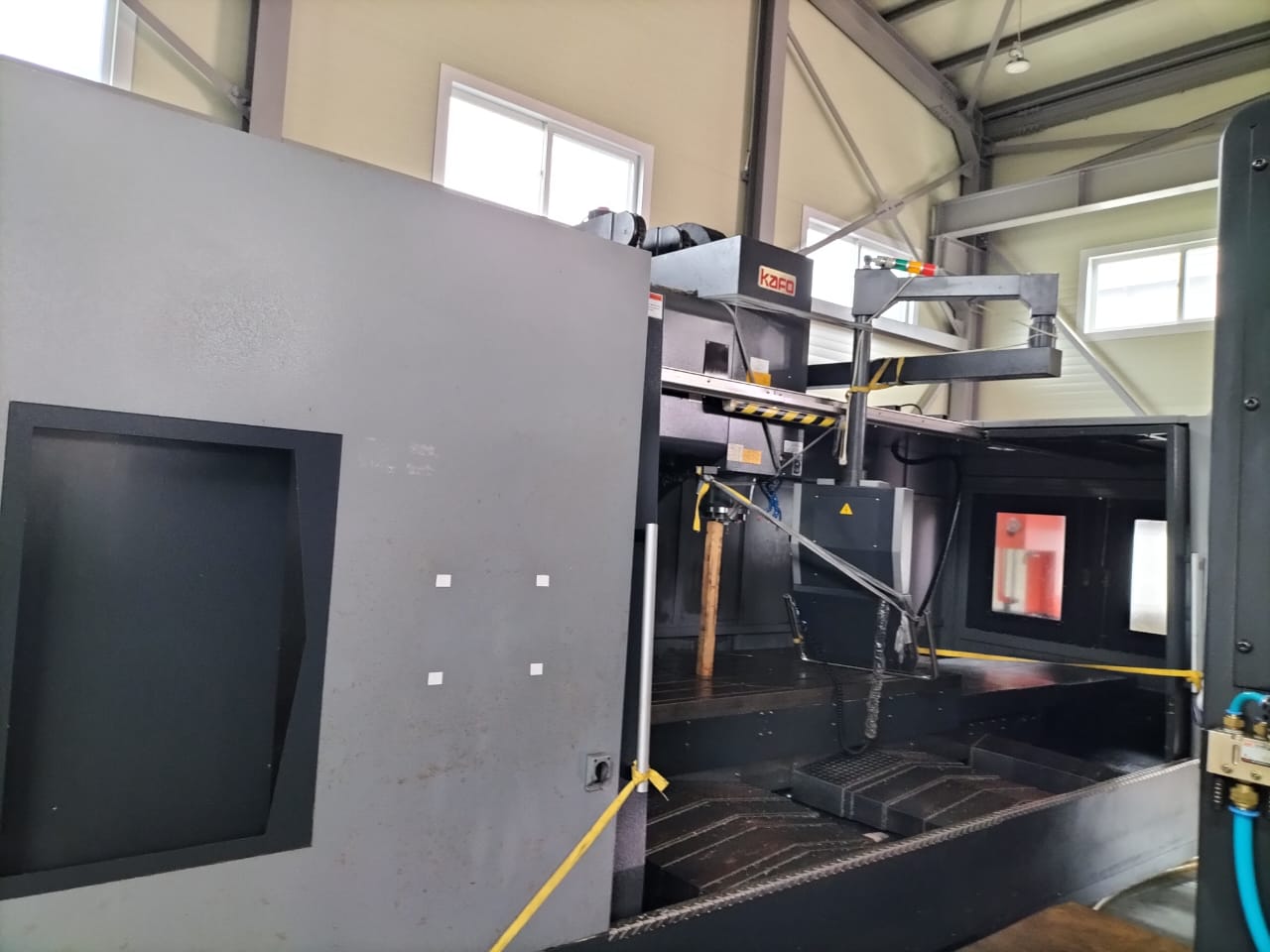

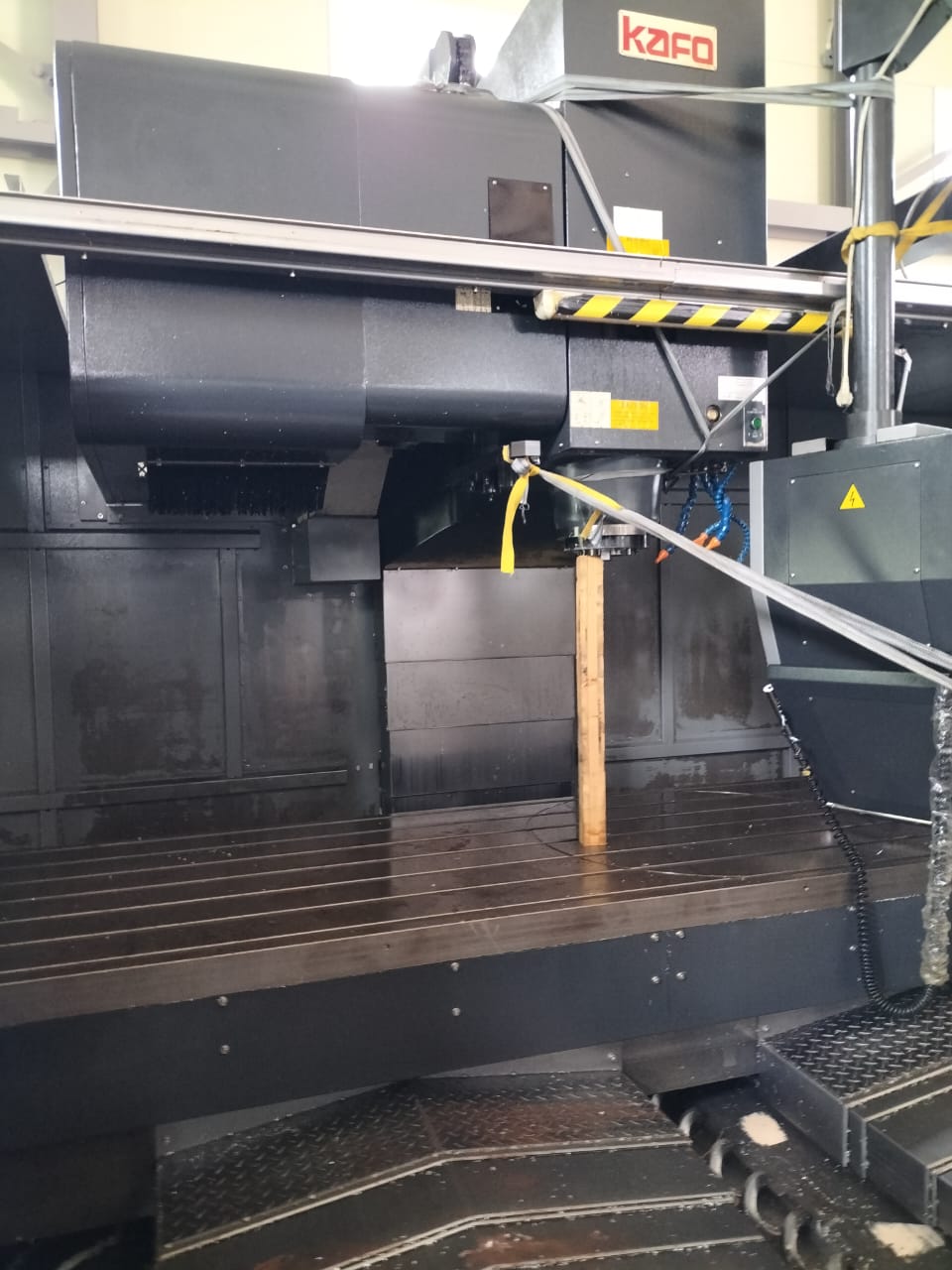

KAFO VMC-3100 – Heavy-Duty Vertical Machining Center
Boost your production capabilities with the KAFO VMC-3100, a robust vertical machining center ideal for heavy, oversized workpieces. Featuring a BT50 spindle, large 3100 mm X-axis travel, and a sturdy 8-ton capacity table, this machine delivers outstanding performance in mold making, die manufacturing, and industrial parts machining.
Rigid double-column structure for high stability
High-power 22 kW spindle for heavy-duty cutting

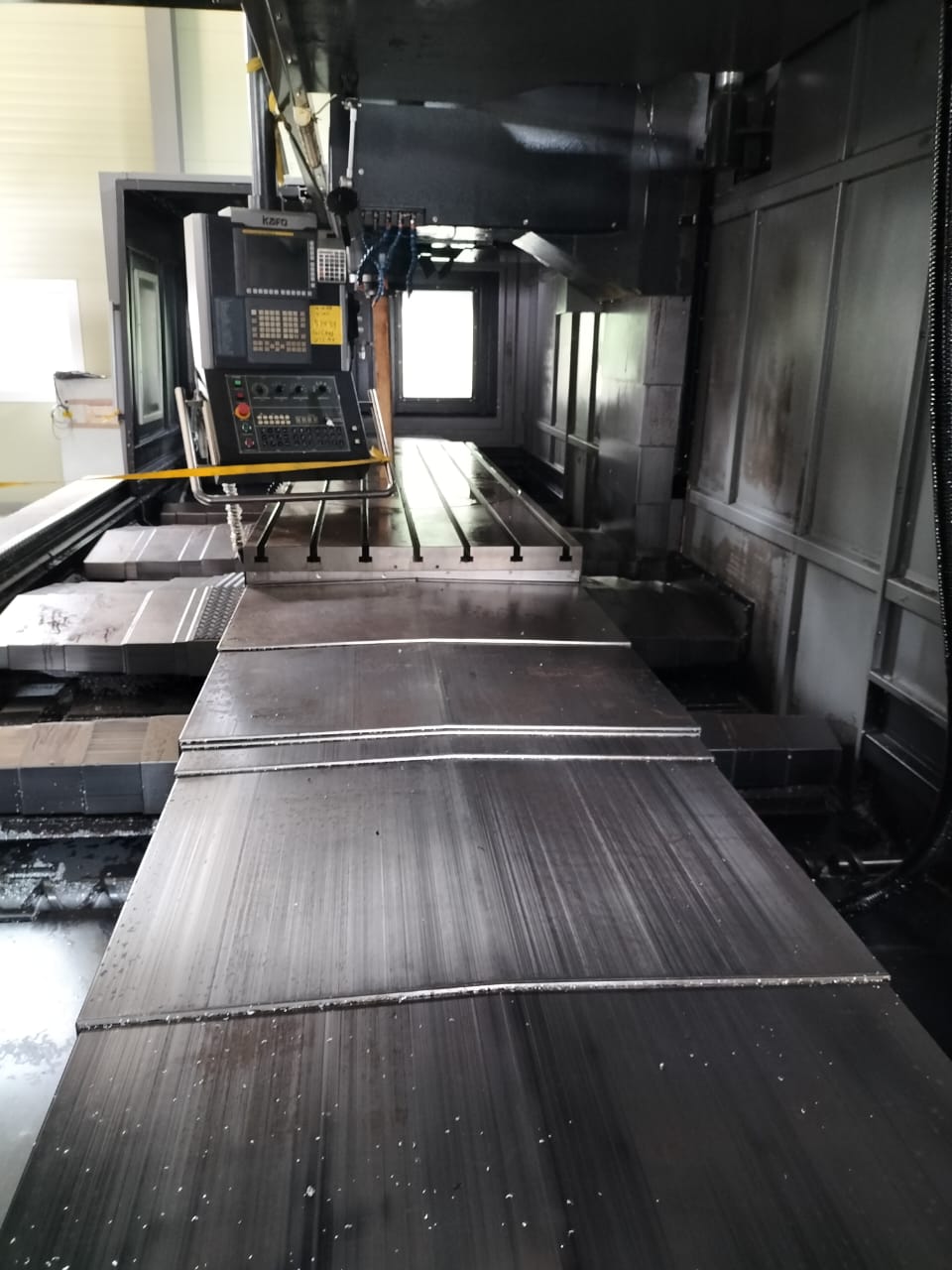

Large working area: 3200 x 1500 mm table
Automatic Tool Changer with 24 stations
Ideal for large molds, dies, and aerospace components
Manufacturer | KAFO |
Model | VMC-3100 |
Condition | Very Good |
CNC Control | FANUC 31i |
Spindle tool size | BT-50 |
Spindle speed | 6.000 RPM |
Spindle motor power (cont/30 min) | 15 / 18.5 kW (opt. 22 / 26 kW) |
Spindle steps | 2 steps |
X axis | 3.100 mm |
Y axis | 1.020 mm |
Z axis | 900 mm |
Table dimensions | 3.100 x 1.000 mm |
Max load allowed on table | 4.000 Kg |
ATC capacity | 40 positions |
