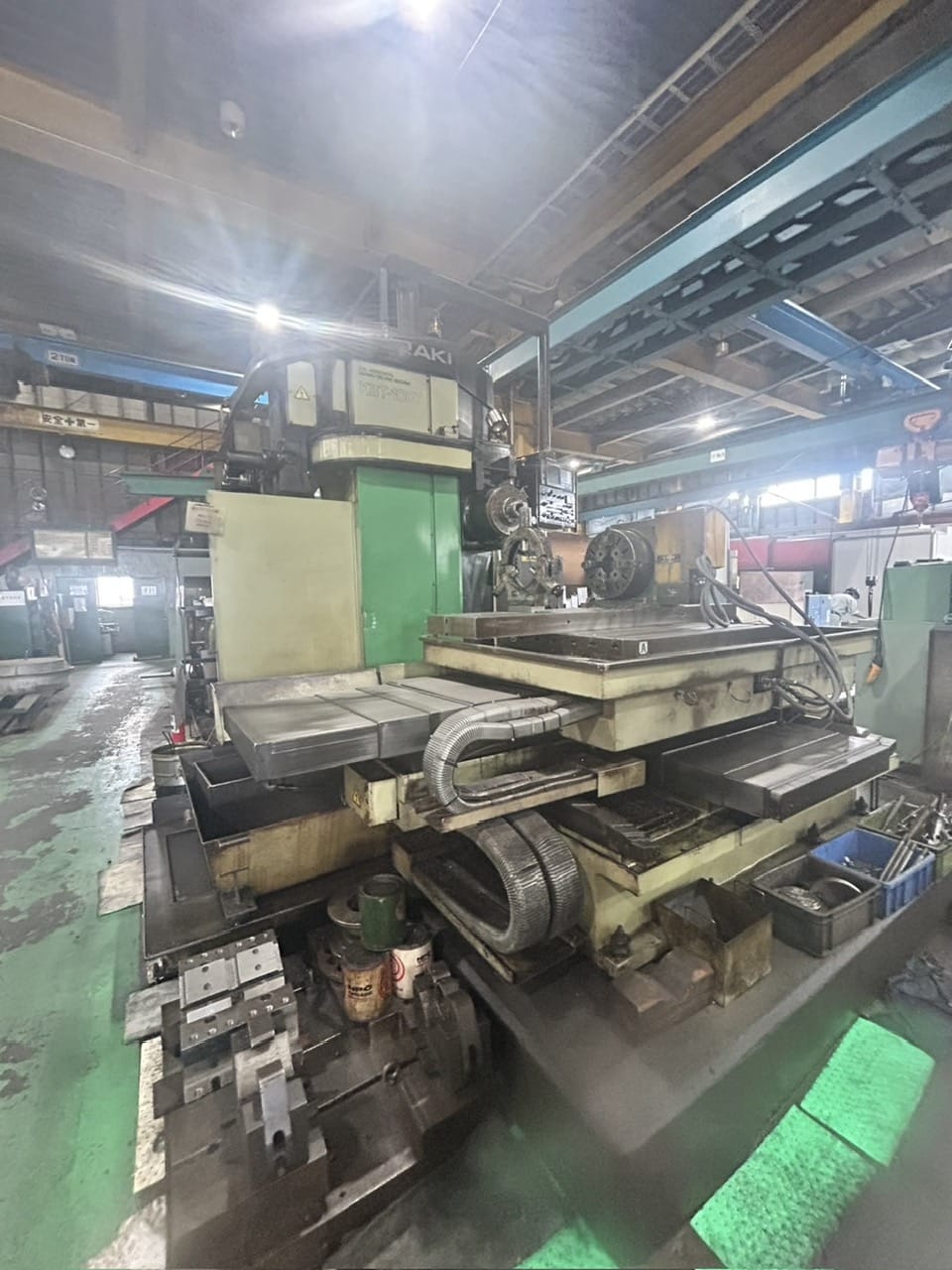

Kuraki KBT-10DX
CNC horizontal boring mill
The Kuraki KBT-10DX is a CNC horizontal boring mill, also known as a table-type boring and milling machine. It is designed for heavy-duty machining tasks involving large, bulky work-pieces.
What Parts Are Typically Manufactured with It?
Given its capabilities, the Kuraki KBT-10DX is well-suited for machining large, heavy, and precision-critical components such as:
Engine blocks and cylinder heads (automotive or aerospace)
Large flanges, housings, and gearbox cases
Rotary equipment components (e.g., turbine or pump casings)
Industrial bases and frames with complex profiles or multi-face requirements
Workpieces requiring deep boring, large bores, or heavy material removal
The machine’s high rigidity, large work area, and precision control make it ideal for aerospace, power generation, automotive, and heavy machinery industries. The addition of a 4th-axis rotary table allows for complex, full-contour machining, expanding its use into multi-sided machining tasks.
spindle diameter | 100 mm |
x-travel | 1500 mm |
y-travel | 1000 mm |
z-travel | 800 mm |
w-axis | 500 mm |
b-axis (rotary table) | 0,001 ° |
table surface area | 1.100 x 950 mm |
max. workpiece weight | 3.000 kg |
spindle taper | BT 50 |
Motor output | 15 kW |
spindle turning speed range | 5 – 2.500 U/min |
number of transmission ranges | 2 |
feed range | 1 – 4.000 mm/min |
rapid travel range | 12 m/min |
Repeatability Ps | ± 0,005 mm |
positioning uncertainty P | 0,018 mm |

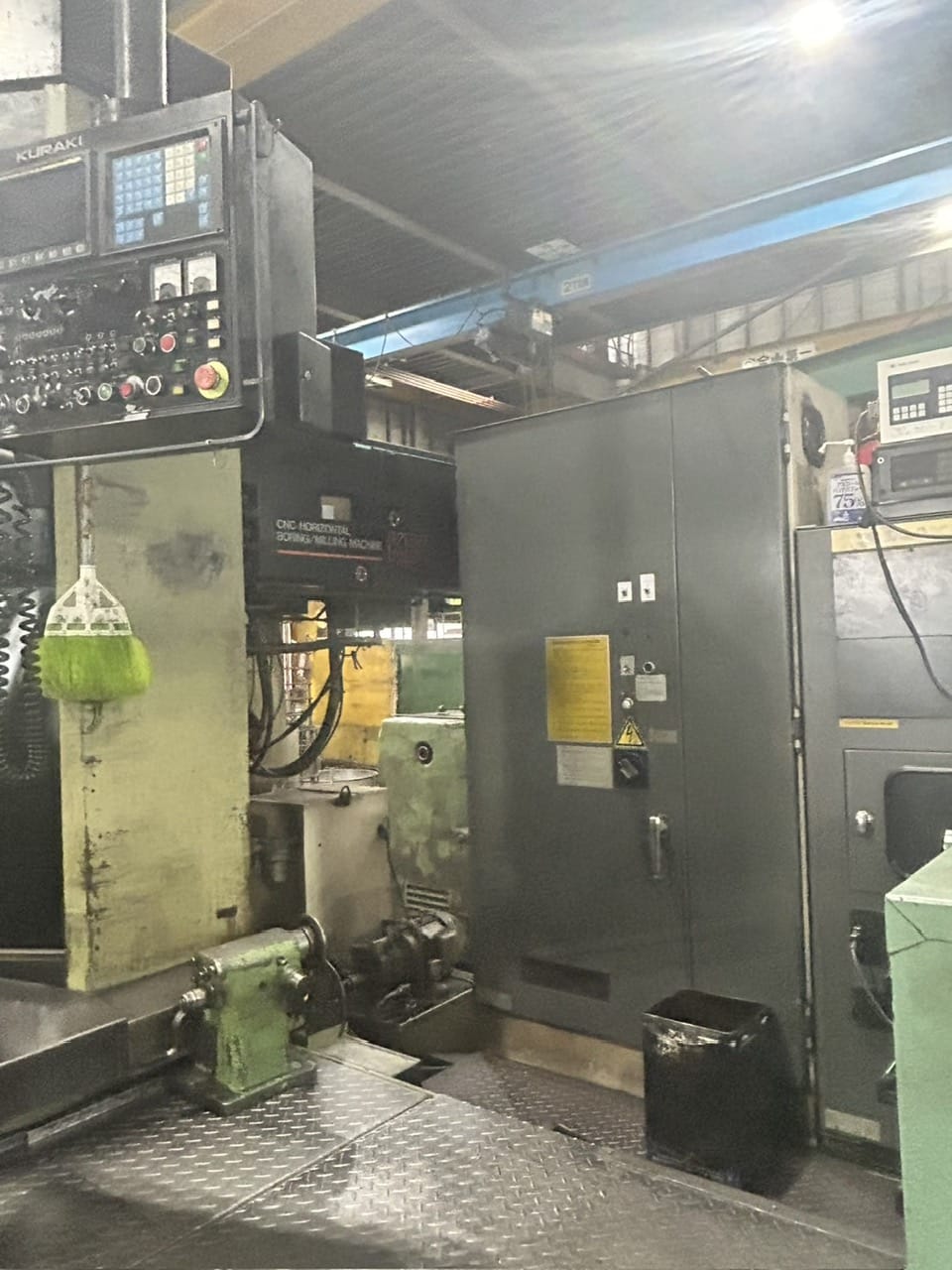

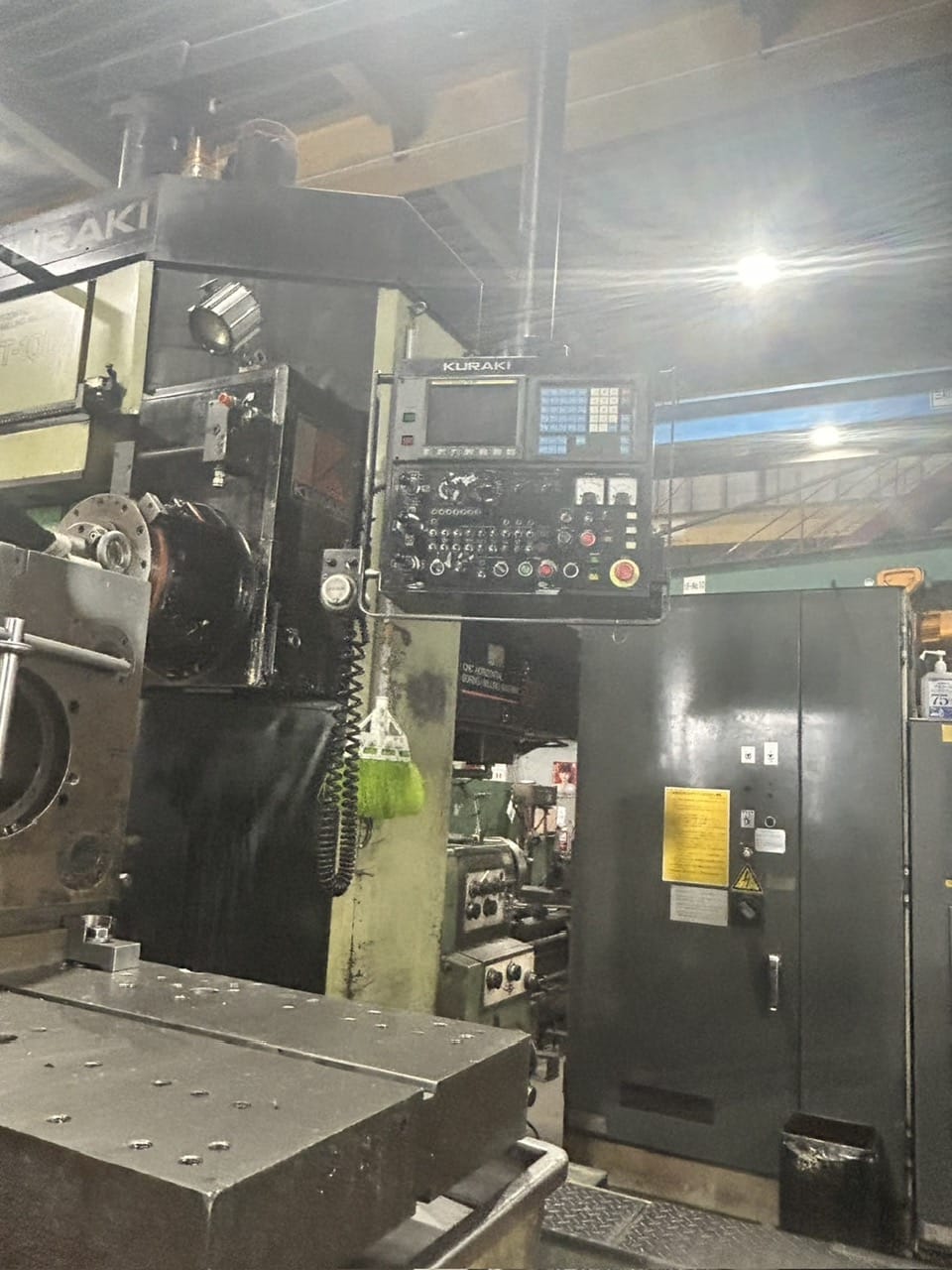

CNC control | FANUC |
Motors+Drives | FANUC |

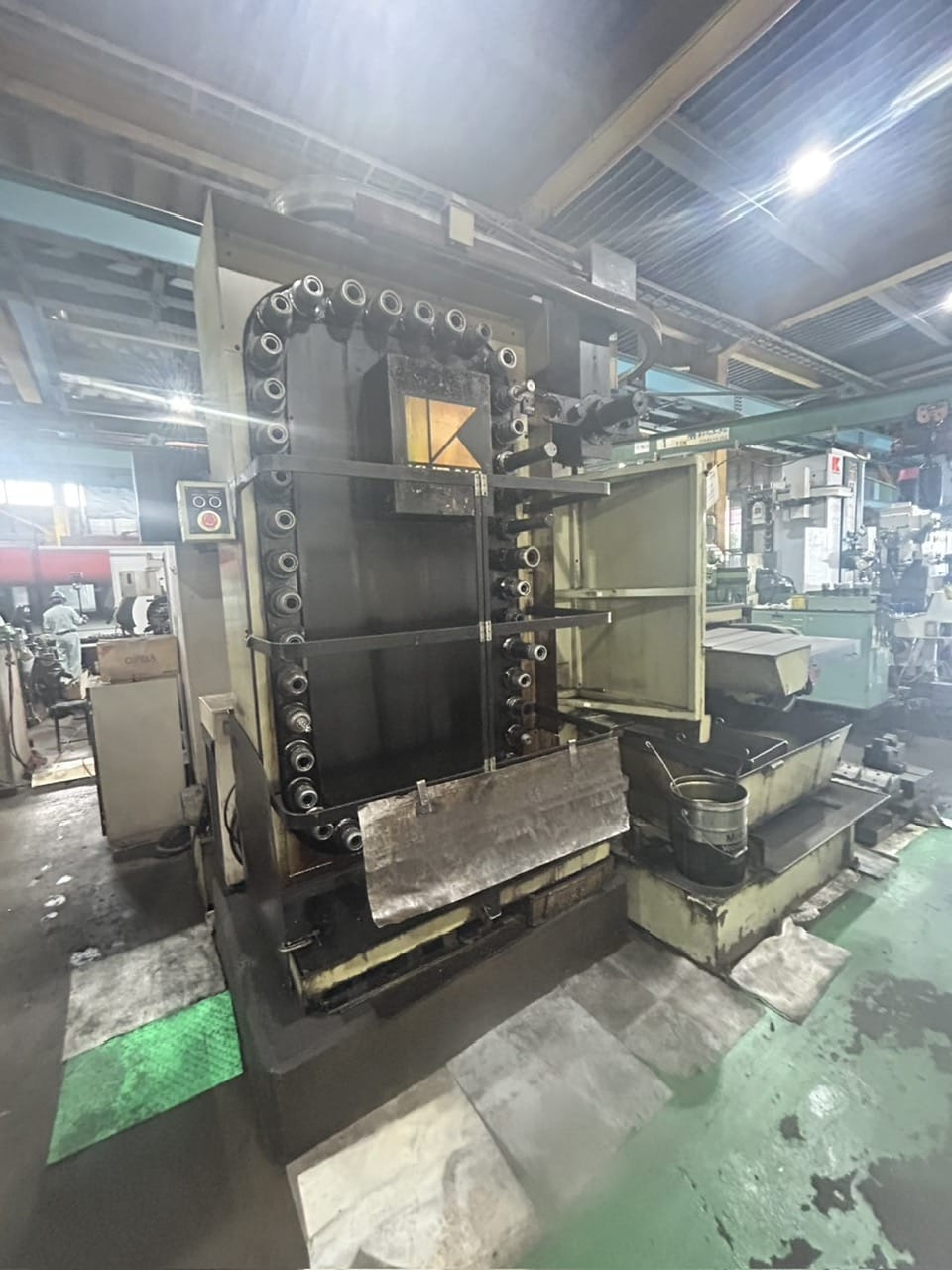

tool change unit |
|
numbers of positions in the tool changer | 40 |
workpiece diameter at full load | 125 mm |
wotkpiece diameter with 2 vacant positions | 230 mm |
tool length – max. | 400 mm |
total power requirement | 50 kVA |
weight of the machine ca. | 20 t |
