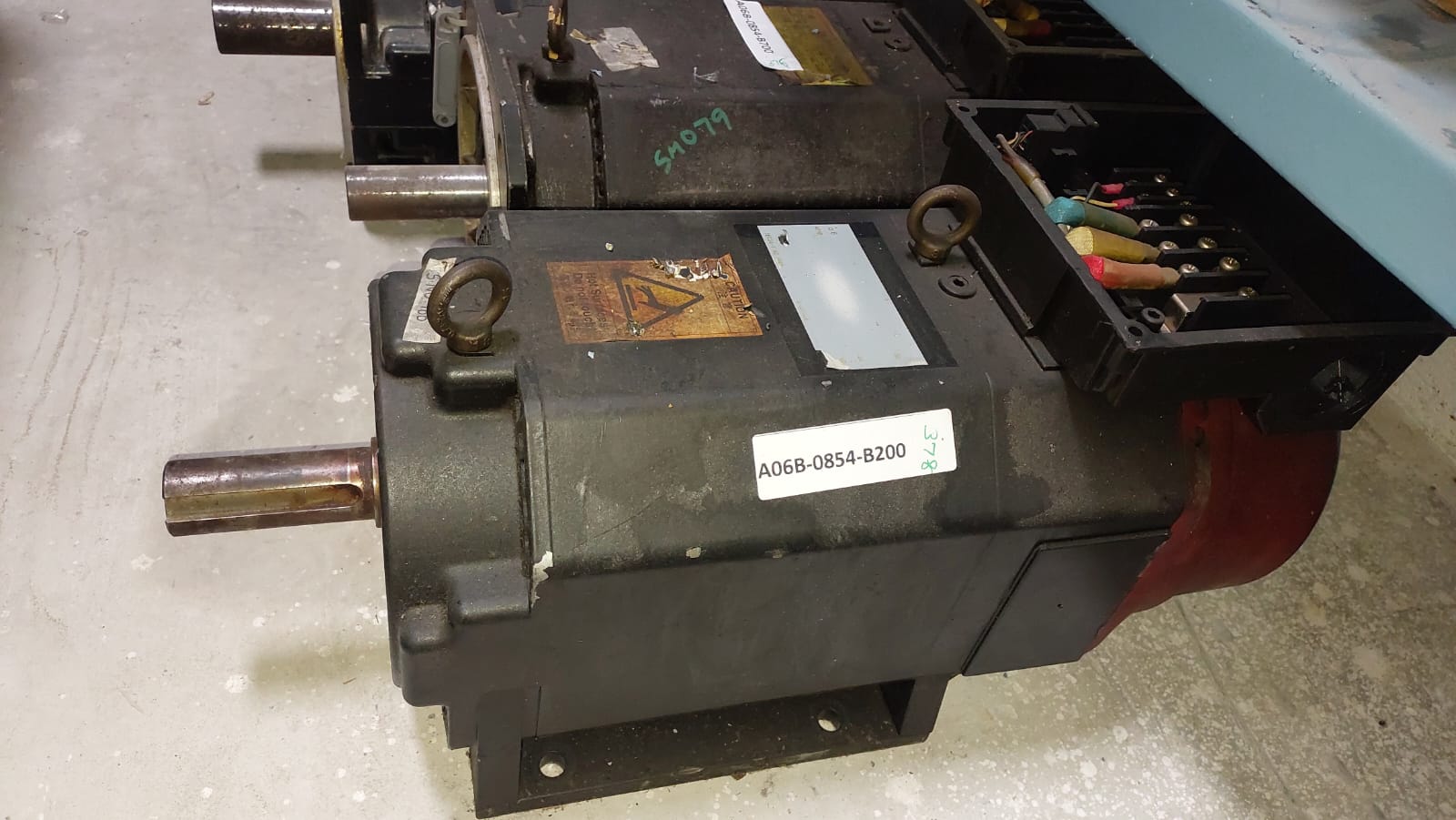

FANUC’s AC spindle motor
FANUC’s Alpha 6/8000 line
Highlights & Use Cases
Best suited for high-speed spindle applications, up to 8,000 RPM.
Ideal when stable foot mounting and keyed shaft coupling are required.
Fan-cooled (rear exhaust) ensures effective thermal management during long runs.
Generally sold as refurbished units; many suppliers offer tested functionality and warranties (e.g. Radwell offers a 2‑year warranty).
Compatibility & Notes
Commonly compatible with FANUC spindle drives and α-series servos configured for 200 V class systems.
Confirm compatibility with the machine’s pulsecoder feedback requirements, especially if using MZ versus M sensors on shaft sensor version (foot version likely with M sensor).
Always refer to the official FANUC manuals (e.g. ordering code list B‑65152E or B‑65151E) for connector pinouts, sensor types, and installation guidelines
Spec | Value |
|---|
Power | 5.5 kW (50 Hz) / 7.5 kW (60 Hz) |
Speed | Up to 8,000 RPM |
Voltage | ~200–230 V |
Current | ~22 A / ~31 A |
Poles | 4 |
Mounting | Foot-mounted, keyed shaft |
Shaft Diameter | ~32 mm |
Cooling | Rear exhaust fan |
Weight | ~73 kg |
Insulation | Class H |
Power Factor | ~78% |
