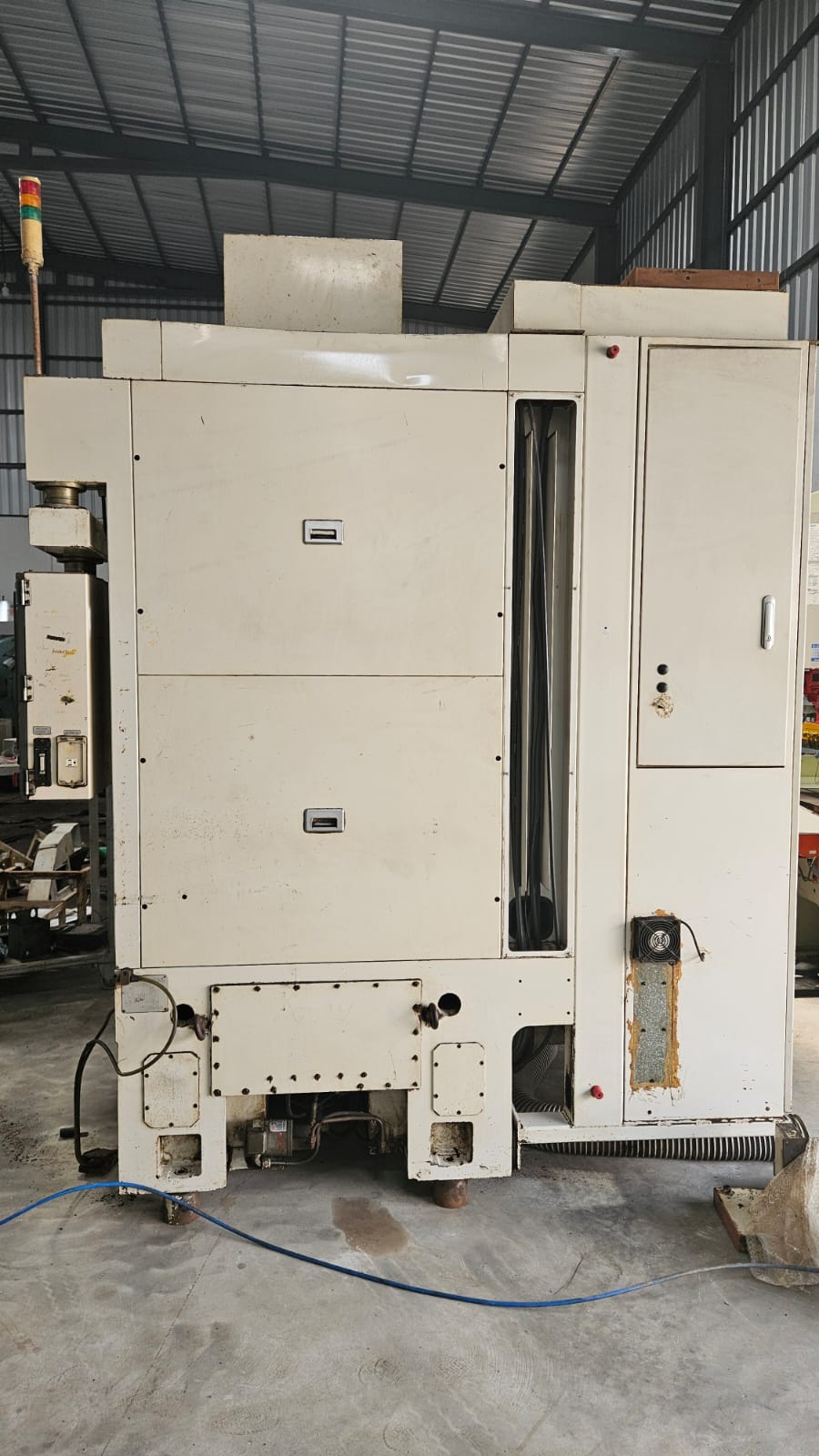

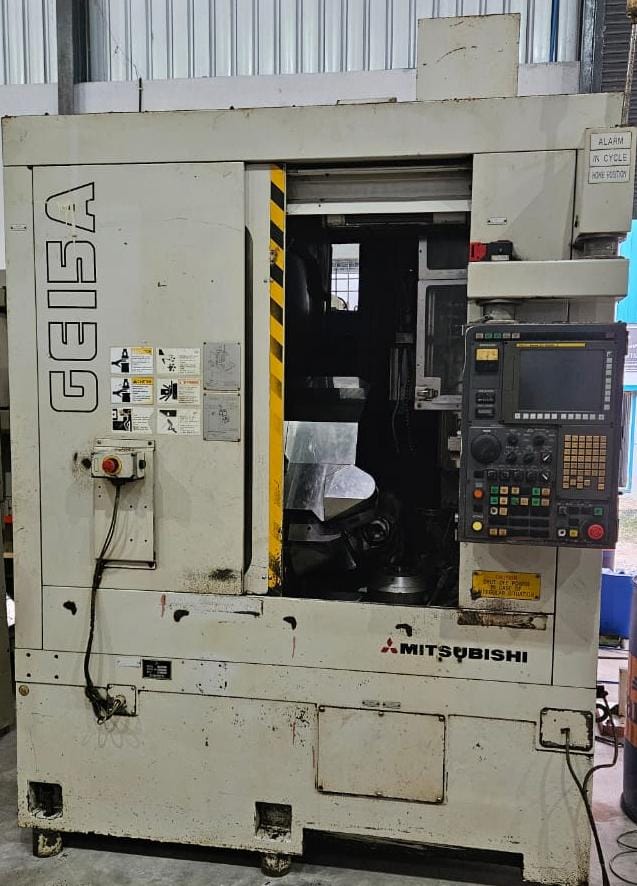

Mitsubishi GE15A
Gear Hobbing Machine (CNC Controlled)
The Mitsubishi GE15A is a precision CNC gear hobbing machine designed for high-accuracy cutting of small to medium-sized gears. It supports high-speed, high-rigidity hobbing operations suitable for automotive, industrial, and precision gearbox applications. Known for reliable Japanese engineering, it delivers consistent accuracy, smooth operation, and excellent productivity in mass-production environments.
Parts & Components That Can Be Manufactured This machine is ideal for producing: Spur gears, Helical gears, Cluster gears Starter gears,Timing gears, Small transmission gears, Precision industrial gears,Spline shafts (with appropriate tooling), Pump gears ,Automotive differential gears (small size).
Mitshubishi GE15A CNC Gear Hobber |
Specs: Details: |
Max. work piece diameter mm φ 150 |
Max. cutting module mm M4 |
Axial travel mm 250 (opt.400) |
Radial travel mm 140 (opt.125) |
Hob |
Max. diameter mm φ 110 |
Max. length mm 180 |
Shift mm 150 |
Speed min-1 200 to 2,000 (opt.300 to 3,000) |
Max. table speed min-1 300 (opt.500) |
Main motor kw 7.5 (opt. 11) |
Machine weight kgs 7,000 |
